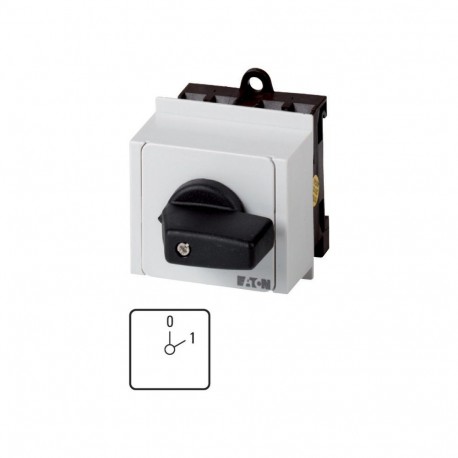

EATON - MOELLER T0-1-8201/IVS T0-1-8201/IVS 009479 Y7-9479 EATON ELECTRIC ON-OFF switches, Contacts: 2, 20 A, front plate: 0-1, 60 °, main.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-8201/IVS 009479 Y7-9479 EATON ELECTRIC ON-OFF switches, Contacts: 2, 20 A, front plate: 0-1, 60 °, main..

T0-1-8201/IVS

009479

Y7-9479

EATON - MOELLER

1 Pcs.

ON-OFF switches, Contacts: 2, 20 A, front plate: 0-1, 60 °, maintained, service distribution board mounting ON-OFF 2-pole disconnector switch 20 A Indicator plate: 0-1 60 Eaton Moeller® series T0 ON-OFF switches, T0, 20 A, service distribution board mounting, 1 contact unit(s), Contacts: 2, 60 °, maintained, With 0 (Off) position, 0-1, Design number 8201 On-Off switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 2, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 60 °, Switching performance: maintained, With 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 0-1

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller ON-OFF switch (part number T0-1-8201/IVS) serves as a principal disconnect or power isolation device within electrical distribution assemblies and machine control panels. These robust switches safely interrupt or establish main circuits to protect equipment and operators. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 2
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): Yes
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 4
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
009479
Model Code
T0-1-8201/IVS
EAN
4015080094791
Product Length/Depth
82 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.106 kg
Certifications
CSA File No.: 012528
CSA-C22.2 No. 60947-4-1-14
UL 60947-4-1
CSA
UL File No.: E36332
VDE 0660
IEC/EN 60947
IEC/EN 60947-3
UL Category Control No.: NLRV
UL
IEC/EN 60204
CE
CSA Class No.: 3211-05
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
