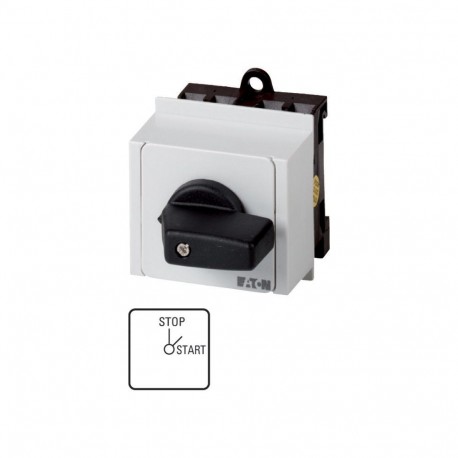

EATON - MOELLER T0-1-15411/IVS T0-1-15411/IVS 009270 Y7-9270 EATON ELECTRIC ON-OFF switches, Contacts: 1, 20 A, front plate: STOP-START, 45.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15411/IVS 009270 Y7-9270 EATON ELECTRIC ON-OFF switches, Contacts: 1, 20 A, front plate: STOP-START, 45..

T0-1-15411/IVS

009270

Y7-9270

EATON - MOELLER

1 Pcs.

ON-OFF switches, Contacts: 1, 20 A, front plate: STOP-START, 45 °, maintained, service distribution board mounting ON-OFF disconnector switch 1 pole 20 A Indicator plate: Eaton Moeller® series T0 ON-OFF switches, T0, 20 A, service distribution board mounting, 1 contact unit(s), Contacts: 1, 45 °, maintained, Without 0 (Off) position, STOP-START, Design number 15411 On-Off switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 1, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 45 °, Switching performance: maintained, Without 0 (Off) position, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: STOP-START

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller ON-OFF switch, part code T0-1-15411/IVS, offers robust circuit control for industrial distribution setups and machinery panels. Devices of this type are implemented to manage equipment power feeds and ensure reliable manual intervention capabilities.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 4
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On-off switch
Catalog Number
009270
Model Code
T0-1-15411/IVS
EAN
4015080092704
Product Length/Depth
82 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.106 kg
Certifications
IEC/EN 60204
CE
CSA File No.: 012528
UL
UL Category Control No.: NLRV
UL 60947-4-1
CSA
IEC/EN 60947-3
CSA-C22.2 No. 60947-4-1-14
CSA-C22.2 No. 94
VDE 0660
UL File No.: E36332
IEC/EN 60947
CSA Class No.: 3211-05
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
