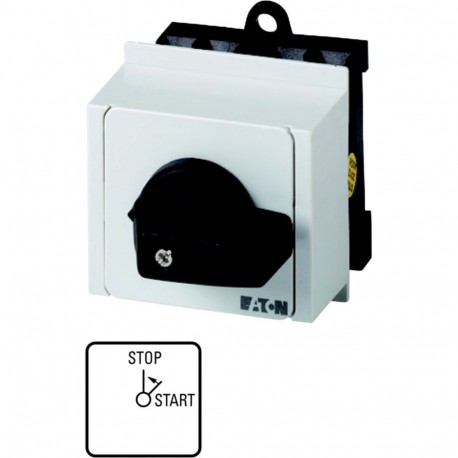

EATON - MOELLER T0-1-15311/IVS T0-1-15311/IVS 009209 Y7-9209 EATON ELECTRIC On switches, Contacts: 1, 20 A, front plate: STOP START, 90 °, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15311/IVS 009209 Y7-9209 EATON ELECTRIC On switches, Contacts: 1, 20 A, front plate: STOP START, 90 °, ..

T0-1-15311/IVS

009209

Y7-9209

EATON - MOELLER

1 Pcs.

On switches, Contacts: 1, 20 A, front plate: STOP Gear switch 1 pole 20 A Indicator plate: STOP Eaton Moeller® series T0 On switches, T0, 20 A, service distribution board mounting, 1 contact unit(s), Contacts: 1, 90 °, momentary, Without 0 (Off) position, With spring-return to STOP, STOP On switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 1, Degree of Protection: Front IP30, Design: service distribution board mounting, Switching angle: 90 °, Switching performance: momentary, Without 0 (Off) position, With spring-return to STOP, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: STOP

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller T0-1-15311/IVS on switch is a robust manual disconnect and control component installed in industrial machinery to safely interrupt or establish power supply paths. Such switches provide reliable direct control for electrical loads within distribution enclosures and control panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of switch (EF003496): On/Off switch
  • Number of poles (EF001391): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 20 A
  • Number of switch positions (EF000231): 2
  • With zero (off) position (EF001416): No
  • With retraction in 0-position (EF002428): No
  • Device construction (EF008240): Built-in device
  • Width in number of modular spacings (EF002950): 4
  • Suitable for floor mounting (EF007243): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Complete device in housing (EF007317): No
  • Type of control element (EF006976): Toggle
  • Front shield size (EF007176): 48x48 mm

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On switch
Catalog Number
009209
Model Code
T0-1-15311/IVS
EAN
4015080092094
Product Length/Depth
82 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.106 kg
Certifications
CSA Class No.: 3211-05
UL
CSA File No.: 012528
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
IEC/EN 60947-3
UL File No.: E36332
CSA-C22.2 No. 60947-4-1-14
CE
UL 60947-4-1
CSA
IEC/EN 60204
CSA-C22.2 No. 94
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
