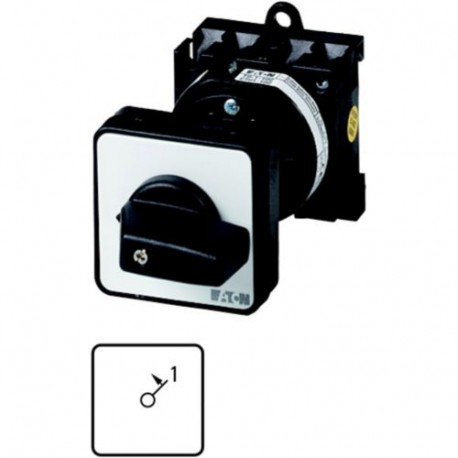

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
T0-1-15321/Z 095809 Y7-95809 EATON ELECTRIC On switches, Contacts: 1, Spring-return in position 1, 20 A, fro..
T0-1-15321/Z
095809
Y7-95809
EATON - MOELLER
1 Pcs.
On switches, Contacts: 1, Spring-return in position 1, 20 A, front plate: I<1, 45 °, momentary, rear mounting
Gear switch 1 pole 20 A Indicator Plate: I<1 45° Mounting
Eaton Moeller® series T0 On switches, T0, 20 A, rear mounting, 1 contact unit(s), Contacts: 1, Spring-return in position 1, 45 °, momentary, With spring-return from 1, I<1, Design number 15321
On switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 1, Spring-return: Spring-return in position 1, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: momentary, With spring-return from 1, 1 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: I<1
Automation > Control switch
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series T0 On switch
Catalog Number
095809
Model Code
T0-1-15321/Z
EAN
4015080958093
Product Length/Depth
118 mm
Product Height
48 mm
Product Width
48 mm
Product Weight
0.112 kg
Certifications
CE
CSA Class No.: 3211-05
UL
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3
CSA-C22.2 No. 94
VDE 0660
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
CSA File No.: 012528
CSA
UL 60947-4-1
UL Category Control No.: NLRV
CSA Class No.: 3211-05
UL
IEC/EN 60204
IEC/EN 60947
IEC/EN 60947-3
CSA-C22.2 No. 94
VDE 0660
CSA-C22.2 No. 60947-4-1-14
UL File No.: E36332
CSA File No.: 012528
CSA
UL 60947-4-1
UL Category Control No.: NLRV
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
| Feature Name | Feature Value |
|---|---|
| Type of switch (EF003496) | On/Off switch |
| Number of poles (EF001391) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated permanent current Iu (EF001389) | 20 A |
| Number of switch positions (EF000231) | 2 |
| With zero (off) position (EF001416) | No |
| With retraction in 0-position (EF002428) | No |
| Device construction (EF008240) | Built-in device |
| Width in number of modular spacings (EF002950) | 0 |
| Suitable for floor mounting (EF007243) | Yes |
| Suitable for front mounting (EF007246) | No |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | Yes |
| Complete device in housing (EF007317) | No |
| Type of control element (EF006976) | Toggle |
| Front shield size (EF007176) | 48x48 mm |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA), front side (EF011961) | 12 |
