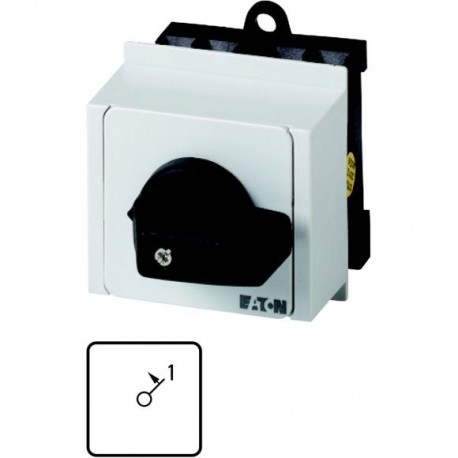

EATON - MOELLER T0-1-15321/IVS T0-1-15321/IVS 093436 Y7-93436 EATON ELECTRIC On switches, Contacts: 1, Spring-return in position 1, 20 A, f.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

T0-1-15321/IVS 093436 Y7-93436 EATON ELECTRIC On switches, Contacts: 1, Spring-return in position 1, 20 A, f..

T0-1-15321/IVS

093436

Y7-93436

EATON - MOELLER

1 Pcs.

On switches, Contacts: 1, Spring-return in position 1, 20 A, front plate: I<1, 45 °, momentary, service distribution board mounting Gear switch 1 pole 20 A Indicator Plate: I<1 45° Mounting Eaton Moeller® series T0 On switches, T0, 20 A, service distribution board mounting, 1 contact unit(s), Contacts: 1, Spring-return in position 1, 45 °, momentary, With spring-return from 1, I<1, Design number 15321

Automation > Control switch
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller on switch acts as a crucial manual control mechanism within service distribution boards to energize or isolate specific circuit pathways. These momentary spring-return units ensure safe, operator-controlled activation during routine maintenance and system testing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: T0-1-15321/IVS
  • Catalogue code: 093436
  • Catalogue title: T0-1-15321/IVS 093436 Y7-93436 EATON ELECTRIC On switches, Contacts: 1, Spring-return in position 1, 20 A, f..
  • Product description: General specifications Product Name Eaton Moeller® series T0 On switch Catalog Number 093436 Model Code T0-1-15321/IVS EAN 4015080934363 Product Length/Depth 82 mm Product Height 55 mm Product Width 54 mm Product Weight
  • Manufacturer summary: On switches, Contacts: 1, Spring-return in position 1, 20 A, front plate: I<1, 45 °, momentary, service distribution board mounting Gear switch 1 pole 20 A Indicator Plate: I<1 45° Mounting Eaton Moeller® series T0 On sw

More info

▲

General specifications

Product Name
Eaton Moeller® series T0 On switch
Catalog Number
093436
Model Code
T0-1-15321/IVS
EAN
4015080934363
Product Length/Depth
82 mm
Product Height
55 mm
Product Width
54 mm
Product Weight
0.106 kg
Certifications
UL Category Control No.: NLRV
VDE 0660
CSA File No.: 012528
UL 60947-4-1
CE
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
CSA Class No.: 3211-05
UL File No.: E36332
UL
IEC/EN 60947
CSA
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
