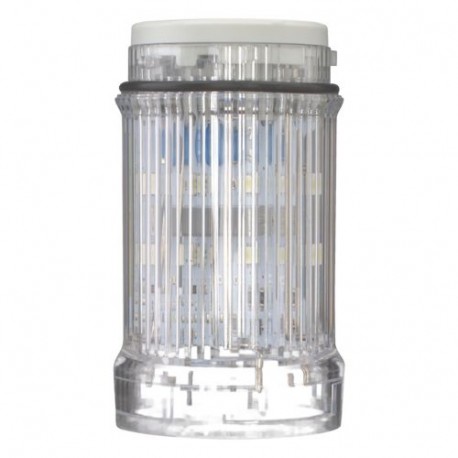

EATON - MOELLER SL4-L-W SL4-L-W 171334 Y7-171334 EATON ELECTRIC Continuous light, white View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL4-L-W 171334 Y7-171334 EATON ELECTRIC Continuous light, white

SL4-L-W

171334

Y7-171334

EATON - MOELLER

1 Pcs.

Continuous light, white SL4-L-W Eaton Moeller® series SL4 Ba15d continuous light module;white Continuous light module, Color Clear, without light elements, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= < 250 V AC/DC, Type of light: Continuous light, Light elements: Filament lamp max. 4 W, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller SL4-L-W continuous light module acts as a steady optical signal element for factory automation equipment and control panels. Signal elements of this standard configuration mount on modular indicator columns to communicate routine operational conditions to operators.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Continuous light
  • Repetition frequency settable (EF018169): No
  • Outer diameter (EF000015): 43 mm
  • Operating voltage AC 50 Hz (EF008206): 24 V
  • Operating voltage AC 60 Hz (EF008207): 24 V
  • Operating voltage DC (EF008208): 24 V
  • Voltage type (EF000187): AC/DC
  • Lamp type (EF002423): LED
  • Housing colour (EF000136): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X

More info

▲

General specifications

Product Name
Eaton Moeller® series SL4 Continuous light module
Catalog Number
171334
Model Code
SL4-L-W
EAN
4015081678716
Product Length/Depth
43 mm
Product Height
75 mm
Product Width
43 mm
Product Weight
0.037 kg
Certifications
Certified by UL for use in Canada
CSA Class No.: NKCR7
IEC/EN 60947-5-1
UL
CSA-C22.2 No. 14-10
IEC/EN 60529
CSA-C22.2 No. 94-91
CE
UL Category Control No.: NKCR
UL 508
UL report applies to both US and Canada
UL File No.: E29184
Catalog Notes
Without light elements

Features & Functions

Color
Other
Enclosure color
Black
Functions
Continuous light
Light modules
Filament lamp max. 4 W
Number of modules
Max. 10 (with base for mounting on both sides)
Max. 5 (with standard base)

General

Connection to SmartWire-DT
No
Degree of protection
NEMA 4X
IP66
Lifespan, electrical
3,000 h
Light type
Continuous light
Material
Enclosure: Polycarbonate (PC)
Cap: Polycarbonate (PC)
Mounting Method
BA15d lamp socket
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
Mechanical, According to IEC/EN 60068-2-27
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Type
Continuous light module
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Leakage current
0.003 A
Power consumption
Max. 4 W with the specified voltages
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
24 V
Rated operational voltage (Ue) at AC - max
250 V
Rated operational voltage (Ue) at DC - min
24 V
Rated operational voltage (Ue) at DC - max
250 V
