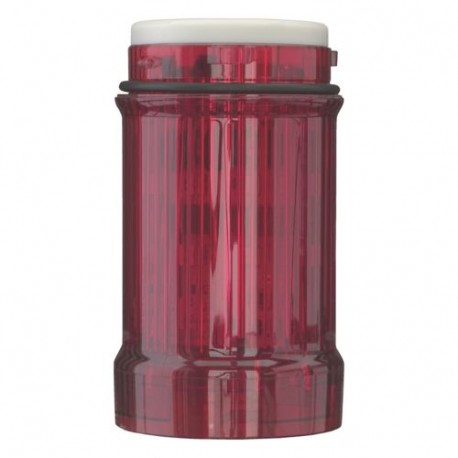

SL4-L-R 171333 Y7-171333 EATON ELECTRIC Continuous light, red
SL4-L-R
171333
Y7-171333
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A continuous light, red functions as a primary optical indicator within machine status tower configurations, providing reliable visual alerts in industrial automation setups. Units of this type mount onto control columns to communicate process states or safety warnings to floor operators.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Continuous light
- Repetition frequency settable (EF018169): No
- Colour (EF000007): Red
- Outer diameter (EF000015): 43 mm
- Operating voltage AC 50 Hz (EF008206): 24 V
- Operating voltage AC 60 Hz (EF008207): 24 V
- Operating voltage DC (EF008208): 24 V
- Voltage type (EF000187): AC/DC
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 4X
More info
▲General specifications
UL Category Control No.: NKCR
CSA Class No.: NKCR7
UL 508
IEC/EN 60947-5-1
CSA-C22.2 No. 14-10
CSA-C22.2 No. 94-91
UL
CE
Certified by UL for use in Canada
IEC/EN 60529
UL report applies to both US and Canada
Features & Functions
Max. 5 (with standard base)
General
NEMA 4X
Enclosure: Polycarbonate (PC)
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
