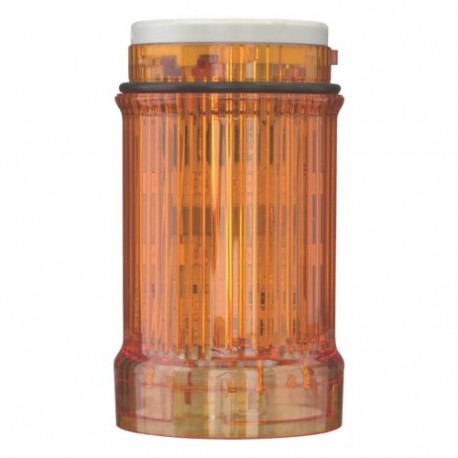

SL4-L-A 171336 Y7-171336 EATON ELECTRIC Continuous light, orange
SL4-L-A
171336
Y7-171336
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller SL4-L-A continuous light element provides clear visual status indication when integrated into modular signal tower assemblies on industrial equipment. Stack lights are essential for communicating machine modes, process steps, and alert statuses across factory environments.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function: Continuous light
- Repetition frequency settable: No
- Colour: Orange
- Outer diameter: 43 mm
- Operating voltage AC 50 Hz: 24 V
- Operating voltage AC 60 Hz: 24 V
- Operating voltage DC: 24 V
- Voltage type: AC/DC
- Housing colour: Black
- Degree of protection (IP): IP66
- Degree of protection (NEMA): 4X
More info
▲General specifications
UL Category Control No.: NKCR
UL 508
IEC/EN 60529
UL report applies to both US and Canada
CSA Class No.: NKCR7
CE
CSA-C22.2 No. 14-10
CSA-C22.2 No. 94-91
UL
UL File No.: E29184
IEC/EN 60947-5-1
Features & Functions
Max. 5 (with standard base)
General
IP66
Enclosure: Polycarbonate (PC)
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
