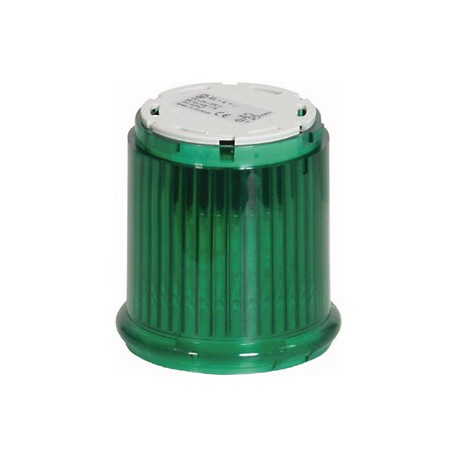

SL-L-G 205314 EATON ELECTRIC permanent green light module
SL-L-G
205314
EATON - MOELLER
10 Pcs.
permanent green light module
Continuous light, green
Automation > Optical module for signal tower
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteMore info
▲Continuous light, green
Continuous light, without light elements, Product range: SL signal towers, Degree of Protection: IP54, Connection to SmartWire-DT: no
Delivery program
Technical data
General
Degree of protection, IEC/EN 60529
IP54
Design verification as per IEC/EN 61439
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+55 °C
Technical data ETIM 7.0
Low-voltage industrial components (EG000017) / Optical module for signal tower (EC000232)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Optical module for signal tower ([email protected] [AKF038014])
Function
Continuous light
Colour
Green
Outer diameter
58 mm
Operating voltage at AC 50 Hz
230 - 230 V
Operating voltage at AC 60 Hz
230 - 230 V
Operating voltage at DC
24 - 24 V
Voltage type
AC/DC
Lamp type
None
Colour housing
Other
Degree of protection (IP)
IP54
Degree of protection (NEMA)
12
Approvals
Product Standards
IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking
UL File No.
E29184
UL Category Control No.
NKCR
CSA File No.
012528
CSA Class No.
3211-03
North America Certification
UL listed, CSA certified
