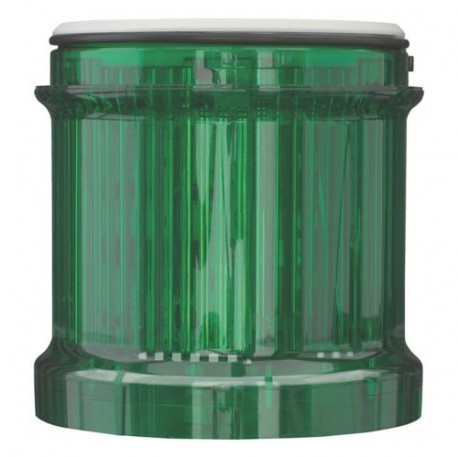

SL7-L-G 171434 Y7-171434 EATON ELECTRIC Continuous light, green
SL7-L-G
171434
Y7-171434
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller continuous light (SL7-L-G) is a steady-illumination signaling module used within modular signal columns to denote standard operating parameters on industrial machinery. Operators rely on these optical elements for uninterrupted visual feedback regarding equipment health.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Continuous light
- Repetition frequency settable (EF018169): No
- Colour (EF000007): Green
- Outer diameter (EF000015): 73 mm
- Operating voltage AC 50 Hz (EF008206): 24 V
- Operating voltage AC 60 Hz (EF008207): 24 V
- Operating voltage DC (EF008208): 24 V
- Voltage type (EF000187): AC/DC
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 13
More info
▲General specifications
Certified by UL for use in Canada
CSA-C22.2 No. 94-91
UL File No.: E29184
UL Category Control No.: NKCR
UL
CSA-C22.2 No. 14-10
UL 508
IEC/EN 60529
CE
CSA Class No.: NKCR7
IEC/EN 60947-5-1
Features & Functions
Max. 5 (with standard base)
General
IP66
Enclosure: Polycarbonate (PC)
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
