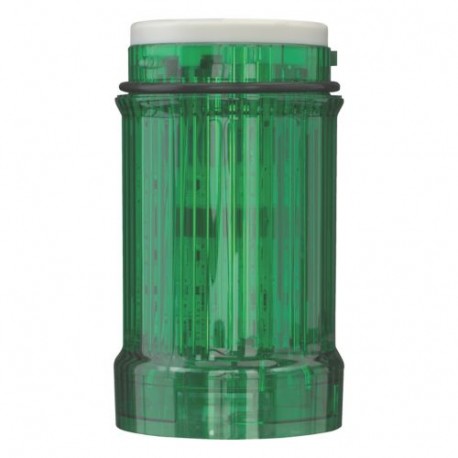

SL4-L-G 171332 Y7-171332 EATON ELECTRIC Continuous light, green
SL4-L-G
171332
Y7-171332
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller SL4-L-G is a continuous light element utilized in modular tower configurations to display steady operational parameters on automated machinery. Stackable signal units allow operators to track active workflows and equipment conditions instantly across manufacturing floors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Continuous light
- Repetition frequency settable (EF018169): No
- Colour (EF000007): Green
- Outer diameter (EF000015): 43 mm
- Operating voltage AC 50 Hz (EF008206): 24 V
- Operating voltage AC 60 Hz (EF008207): 24 V
- Operating voltage DC (EF008208): 24 V
- Voltage type (EF000187): AC/DC
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 13
More info
▲General specifications
UL report applies to both US and Canada
UL Category Control No.: NKCR
IEC/EN 60529
CE
Certified by UL for use in Canada
UL 508
CSA-C22.2 No. 94-91
UL
UL File No.: E29184
CSA-C22.2 No. 14-10
CSA Class No.: NKCR7
Features & Functions
Max. 5 (with standard base)
General
NEMA 13
Enclosure: Polycarbonate (PC)
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
