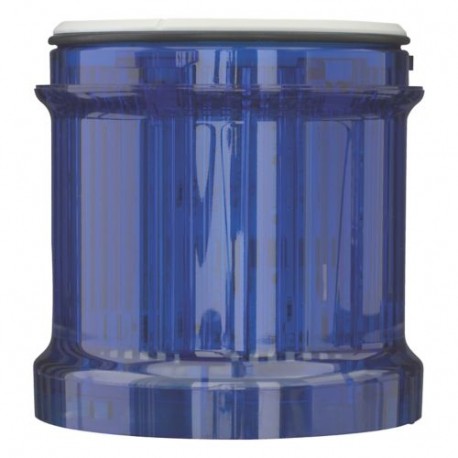

EATON - MOELLER SL7-L-B SL7-L-B 171433 Y7-171433 EATON ELECTRIC Continuous light, blue View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SL7-L-B 171433 Y7-171433 EATON ELECTRIC Continuous light, blue

SL7-L-B

171433

Y7-171433

EATON - MOELLER

1 Pcs.

Continuous light, blue SL7-L-B Eaton Moeller® series SL7 Ba15d continuous light module; blue Continuous light module, Color Blue, without light elements, Product range: SL signal towers, Degree of Protection: IP66, Protection type UL: Type 4, 4X, 13, Rated operational voltage: Ue= < 250 V AC/DC, Type of light: Continuous light, Light elements: Filament lamp max. 7 W, Mounting position: As required, Connection to SmartWire-DT: no, Standards: IEC/EN 60947-5-1

Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller continuous light, blue module functions as a steady optical indicator for industrial stack light assemblies on factory machinery. These blue continuous units communicate specific operational modes to plant floor personnel.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Continuous light
  • Repetition frequency settable (EF018169): No
  • Colour (EF000007): Blue
  • Outer diameter (EF000015): 73 mm
  • Operating voltage AC 50 Hz (EF008206): 24 V
  • Operating voltage AC 60 Hz (EF008207): 24 V
  • Operating voltage DC (EF008208): 24 V
  • Voltage type (EF000187): AC/DC
  • Housing colour (EF000136): Black
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 13

More info

▲

General specifications

Product Name
Eaton Moeller® series SL7 Continuous light module
Catalog Number
171433
Model Code
SL7-L-B
EAN
4015081677658
Product Length/Depth
73 mm
Product Height
73 mm
Product Width
73 mm
Product Weight
0.075 kg
Certifications
CSA-C22.2 No. 14-10
UL report applies to both US and Canada
CSA-C22.2 No. 94-91
Certified by UL for use in Canada
IEC/EN 60947-5-1
IEC/EN 60529
CE
UL File No.: E29184
UL Category Control No.: NKCR
CSA Class No.: NKCR7
UL 508
UL
Catalog Notes
Without light elements

Features & Functions

Color
Blue
Enclosure color
Black
Functions
Continuous light
Light modules
Filament lamp max. 7 W
Number of modules
Max. 5 (with standard base)
Max. 10 (with base for mounting on both sides)

General

Connection to SmartWire-DT
No
Degree of protection
IP66
NEMA 13
Lifespan, electrical
3,000 h
Light type
Continuous light
Material
Enclosure: Polycarbonate (PC)
Cap: Polycarbonate (PC)
Mounting Method
BA15d lamp socket
Mounting position
As required
Overvoltage category
III
Pollution degree
3
Product Category
SL signal towers
Radiation angle
360 °
Rated impulse withstand voltage (Uimp)
4000 V AC
Shock resistance
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Mechanical, According to IEC/EN 60068-2-27
Type
Continuous light module
Voltage type
AC/DC

Climatic environmental conditions

Ambient operating temperature - min
-30 °C
Ambient operating temperature - max
60 °C
Climatic proofing
Damp heat, constant, to IEC 60068-2-78
Damp heat, cyclic, to IEC 60068-2-30

Electrical rating

Leakage current
0.003 A
Power consumption
Max. 7 W with the specified voltages
Rated insulation voltage (Ui)
250 V
Rated operational voltage (Ue) at AC - min
24 V
Rated operational voltage (Ue) at AC - max
250 V
Rated operational voltage (Ue) at DC - min
24 V
Rated operational voltage (Ue) at DC - max
250 V
