View larger

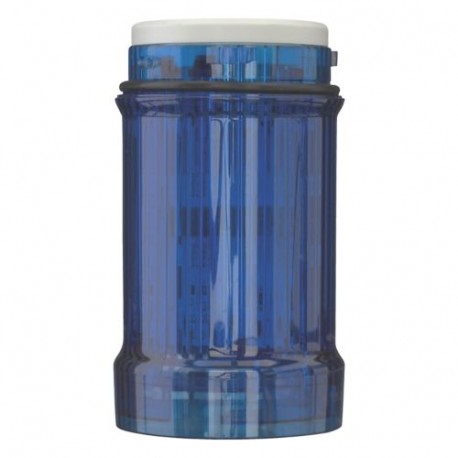

SL4-L-B 171331 Y7-171331 EATON ELECTRIC Continuous light, blue
SL4-L-B
171331
Y7-171331
EATON - MOELLER
1 Pcs.
Automation > Optical module for signal tower
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Continuous light, blue manufactured by Eaton Moeller (SL4-L-B) delivers steady optical status indication for automated industrial environments. Indicator modules like this attach to signaling columns to communicate specific operational metrics or system states to machine operators. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Continuous light
- Repetition frequency settable (EF018169): No
- Colour (EF000007): Blue
- Outer diameter (EF000015): 43 mm
- Operating voltage AC 50 Hz (EF008206): 24 V
- Operating voltage AC 60 Hz (EF008207): 24 V
- Operating voltage DC (EF008208): 24 V
- Voltage type (EF000187): AC/DC
- Housing colour (EF000136): Black
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 13
More info
▲General specifications
CE
Certified by UL for use in Canada
UL 508
UL File No.: E29184
CSA Class No.: NKCR7
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-10
IEC/EN 60947-5-1
IEC/EN 60529
UL Category Control No.: NKCR
UL
Features & Functions
Max. 10 (with base for mounting on both sides)
General
IP66
Enclosure: Polycarbonate (PC)
15 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
