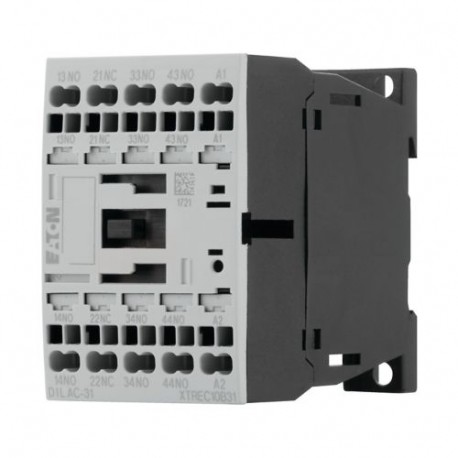

DILAC-31(*VDC) 276493 EATON ELECTRIC Control relays, 12VDC, 8 DI(2 AI), 4 DO relays, Clock
DILAC-31(*VDC)
276493
EATON - MOELLER
10 Pcs.
Automation > Contactor relay
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Providing integrated control and timing capabilities, the Eaton Moeller DILAC-31(*VDC) electronic control relay processes multiple digital inputs for localized machine automation. These units combine flexible logic processing, built-in clocks, and relay outputs into a single compact housing. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: DILAC-31(*VDC)
- Catalogue code: 276493
- Catalogue title: DILAC-31(*VDC) 276493 EATON ELECTRIC Control relays, 12VDC, 8 DI(2 AI), 4 DO relays, Clock
- Product description: General specifications Product Name Eaton Moeller® series DILA Control relay Catalog Number 276493 Model Code DILAC-31(*VDC) Product Length/Depth 75 mm Product Height 68 mm Product Width 45 mm Product Weight 0.286 kg Cer
- Manufacturer summary: Control relays, 12VDC, 8 DI(2 AI), 4 DO relays, Clock Auxiliary Contactor; 3 NO + 1 NC; Snap-on connection; *VDC Contactor relay, *V DC, 3 N/O, 1 NC, Spring-loaded terminals, DC operation
More info
▲General specifications
VDE 0660
EN 60947-5-1
CSA
CSA-C22.2 No. 14-05
CSA File No.: 012528
UL Category Control No.: NKCR
IEC/EN 60947
CSA Class No.: 3211-03
IEC/EN 60947-4-1
UL 508
UL File No.: E29184
CE
Features & Functions
Suppressor circuit
Positive operation contacts
General
5 g, N/C auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Terminal capacities
1 x (0.75 - 1.5) mm², Spring-loaded terminals with or without ferrule DIN 46228
1 x (0.75 - 2.5) mm², Spring-loaded terminals
Electrical rating
5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series)
2 A at 110 V, DC L/R ≤ 50 ms (with 3 contacts in series)
1 A at 220 V, DC L/R ≤ 15 ms (with 1 contact in series)
10 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series)
1 A at 220 V, DC L/R ≤ 50 ms (with 3 contacts in series)
10 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series)
4 A at 60 V, DC L/R ≤ 50 ms (with 3 contacts in series)
6 A at 60 V, DC L/R ≤ 15 ms (with 1 contact in series)
6 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series)
4 A at 24 V, DC L/R ≤ 50 ms (with 3 contacts in series)
16 A
400 V AC, Between auxiliary contacts, According to EN 61140
1 A, 250 V DC, (UL/CSA)
P300, DC operated (UL/CSA)
Magnet system
0.7 - 1.3 V DC x Uc (at 24 V: without auxiliary contact module and at ambient air temperature + 40 °C)
