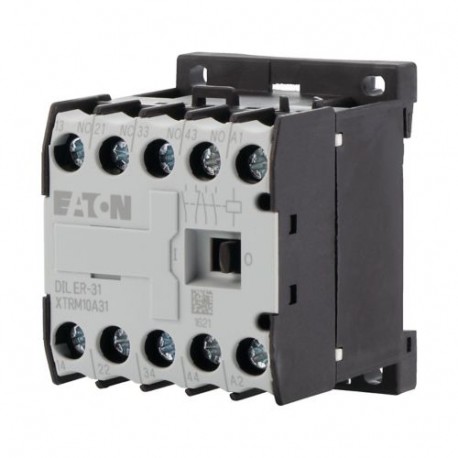

DILER-31(240V50HZ) 010300 Y7-10300 EATON ELECTRIC Contactor relay, 3N/O+1N/C, AC
DILER-31(240V50HZ)
010300
Y7-10300
EATON - MOELLER
1 Pcs.
Automation > Contactor relay
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Operating as an Eaton Moeller DILER-31(240V50HZ) contactor relay, this component is utilized for switching control signals and managing auxiliary logic in electrical enclosures. Relays of this design are essential for establishing reliable interlocks and automated sequencing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage AC 50 Hz (EF003978): 240 V
- Rated control supply voltage AC 60 Hz (EF003979): 0 V
- Rated control supply voltage DC (EF003980): 0 V
- Voltage type for actuating (EF008242): AC
- Rated operation current (EF007679): 10 A
- Rated operation current Ie, 400 V (EF001378): 3 A
- Mounting method (EF000003): DIN-rail/screw
- With LED indication (EF005950): No
- Suitable for manual operation (EF002978): No
- Interface (EF000594): No
- Operating voltage AC 50 Hz (EF008206): 17 V
- Operating voltage AC 60 Hz (EF008207): 17 V
- Operating voltage DC (EF008208): 24 V
- Voltage type (operating voltage) (EF005294): AC/DC
- Rated switch current (EF006706): 10 A
- Connection type auxiliary circuit (EF006820): Screw connection
More info
▲General specifications
IEC/EN 60947-4-1
UL 508
VDE 0660
CSA Class No.: 3211-03
CE
IEC/EN 60947
UL Category Control No.: NKCR
CSA
CSA File No.: 012528
CSA-C22.2 No. 14-05
EN 60947-5-1
UL File No.: E29184
Features & Functions
General
10 g, N/O auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Terminal capacities
2 x (0.75 - 1.5) mm²
1 x (0.75 - 2.5) mm²
1 x (18 - 14)
2 x (18 - 14)
2, Terminal screw, Pozidriv screwdriver
Electrical rating
2.5 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series)
1.5 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series)
2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series)
10 A
300 V AC, Between coil and auxiliary contacts, According to EN 61140
Short-circuit rating
Switching capacity
10 A, 600 V AC, (UL/CSA)
P300, DC operated (UL/CSA)
Magnet system
0.8 - 1.1 V AC x Uc (voltage tolerance - single-voltage coil 50 Hz and dual-voltage coil 50 Hz, 60 Hz)
1.3 W, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz
