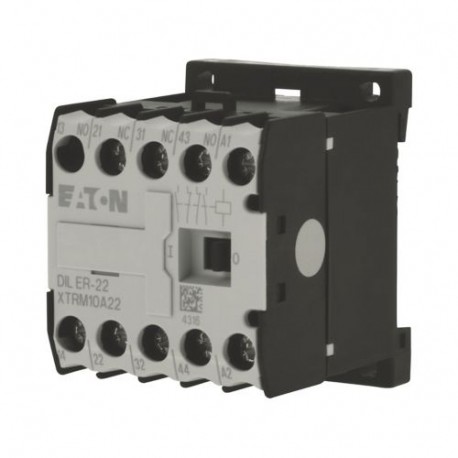

DILER-22-G(48VDC) 010346 Y7-10346 EATON ELECTRIC Contactor relay, 2N/O+2N/C, DC current
DILER-22-G(48VDC)
010346
Y7-10346
EATON - MOELLER
1 Pcs.
Automation > Contactor relay
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller DILER-22-G(48VDC) 010346 Y7-10346 EATON ELECTRIC Contactor relay, 2N/O+2N/C, DC current functions as a specialized control relay designed to manage auxiliary switching circuits and low-power automation logic. These components are frequently deployed in industrial control panels for reliable signal distribution.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage AC 50 Hz (EF003978): 0 V
- Rated control supply voltage AC 60 Hz (EF003979): 0 V
- Rated control supply voltage DC (EF003980): 48 V
- Voltage type for actuating (EF008242): DC
- Rated operation current (EF007679): 10 A
- Rated operation current Ie, 400 V (EF001378): 3 A
- Mounting method (EF000003): DIN-rail/screw
- With LED indication (EF005950): No
- Suitable for manual operation (EF002978): No
- Interface (EF000594): No
- Operating voltage AC 50 Hz (EF008206): 17 V
- Operating voltage AC 60 Hz (EF008207): 17 V
- Operating voltage DC (EF008208): 24 V
- Voltage type (operating voltage) (EF005294): AC/DC
- Rated switch current (EF006706): 10 A
- Connection type auxiliary circuit (EF006820): Screw connection
More info
▲General specifications
CSA File No.: 012528
UL 508
UL Category Control No.: NKCR
CSA-C22.2 No. 14-05
EN 60947-5-1
VDE 0660
UL
CE
IEC/EN 60947-4-1
UL File No.: E29184
CSA Class No.: 3211-03
IEC/EN 60947
Features & Functions
General
10 g, N/O auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Terminal capacities
2 x (0.75 - 1.5) mm²
2 x (0.75 - 2.5) mm²
18 - 14
2 x (18 - 14)
2, Terminal screw, Pozidriv screwdriver
Electrical rating
2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series)
0.5 A at 220 V, DC L/R ≤ 15 ms (with 3 contacts in series)
2.5 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series)
10 A
300 V AC, Between auxiliary contacts, According to EN 61140
Short-circuit rating
Switching capacity
10 A, 600 V AC, (UL/CSA)
A600, AC operated (UL/CSA)
Magnet system
0.85 - 1.3 V DC x Uc
