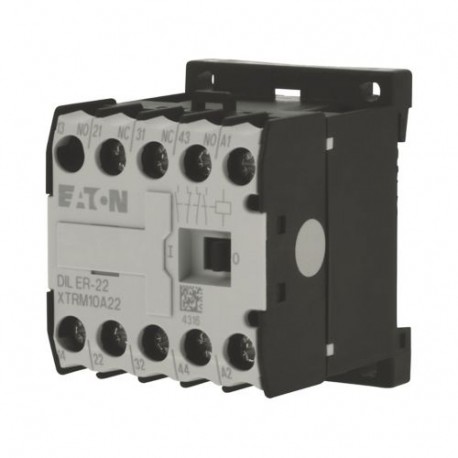

DILER-22(240V50HZ) 010138 Y7-10138 EATON ELECTRIC Contactor relay, 2N / O + 2N / C, AC
DILER-22(240V50HZ)
010138
Y7-10138
EATON - MOELLER
1 Pcs.
Automation > Contactor relay
Contactors up to 170A
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Eaton Moeller DILER-22(240V50HZ) contactor relay serves as a dedicated auxiliary switching unit for managing interlocking networks, signaling circuits, and low-power control lines in industrial setups. Control relays help maintain structured and safe electrical sequencing.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage AC 50 Hz (EF003978): 240 V
- Rated control supply voltage AC 60 Hz (EF003979): 0 V
- Rated control supply voltage DC (EF003980): 0 V
- Voltage type for actuating (EF008242): AC
- Rated operation current (EF007679): 10 A
- Rated operation current Ie, 400 V (EF001378): 3 A
- Mounting method (EF000003): DIN-rail/screw
- With LED indication (EF005950): false
- Suitable for manual operation (EF002978): false
- Interface (EF000594): false
- Operating voltage AC 50 Hz (EF008206): 17 V
- Operating voltage AC 60 Hz (EF008207): 17 V
- Operating voltage DC (EF008208): 24 V
- Voltage type (operating voltage) (EF005294): AC/DC
- Rated switch current (EF006706): 10 A
- Connection type auxiliary circuit (EF006820): Screw connection
More info
▲General specifications
UL 508
CSA Class No.: 3211-03
IEC/EN 60947
EN 60947-5-1
UL File No.: E29184
CE
IEC/EN 60947-4-1
UL
CSA
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
VDE 0660
Features & Functions
General
8 g, N/C auxiliary contact, Basic unit with auxiliary contact module, Mechanical, according to IEC/EN 60068-2-27, Half-sinusoidal shock 10 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Terminal capacities
2 x (0.75 - 1.5) mm²
1 x (0.75 - 2.5) mm²
1 x (18 - 14)
2 x (18 - 14)
2, Terminal screw, Pozidriv screwdriver
Electrical rating
1.5 A at 110 V, DC L/R ≤ 15 ms (with 3 contacts in series)
2.5 A at 60 V, DC L/R ≤ 15 ms (with 2 contacts in series)
2.5 A at 24 V, DC L/R ≤ 15 ms (with 1 contact in series)
10 A
300 V AC, Between auxiliary contacts, According to EN 61140
Short-circuit rating
Switching capacity
0.5 A, 250 V DC, (UL/CSA)
P300, DC operated (UL/CSA)
Magnet system
0.85 - 1.1 V AC x Uc (voltage tolerance - dual frequency coil 50/60 Hz)
1.3 W, AC, Single-frequency coil 50 Hz and Dual-frequency coil 50/60 Hz
