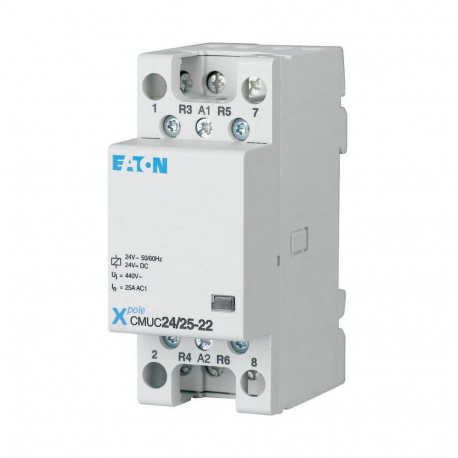

EATON - MOELLER CMUC24/25-22 CMUC24/25-22 137402 Y7-137402 EATON ELECTRIC Installation contactor, 24 VAC/DC, 2N/C+2N/O, 25A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CMUC24/25-22 137402 Y7-137402 EATON ELECTRIC Installation contactor, 24 VAC/DC, 2N/C+2N/O, 25A

CMUC24/25-22

137402

Y7-137402

EATON - MOELLER

1 Pcs.

Installation contactor, 24 VAC/DC, 2N/C+2N/O, 25A CMUC24/25-22 Eaton Distribution parts. Installation contactor, 24 VAC/DC, 2N/C+2N/O, 25A

Automation > Installation contactor for distribution board
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller CMUC24/25-22 installation contactor is built for managing electrical power distribution and heavy loads in automated building and industrial panels. It facilitates safe remote switching for multi-pole circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Rated operating voltage (EF001435): 440 V
  • Rated operation current (EF007679): 25 A
  • Rated excitation voltage (EF008409): 20.4 V
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Voltage type (excitation voltage) (EF005293): AC/DC
  • Number of contacts as normally open contact (EF008256): 2
  • Number of contacts as normally closed contact (EF008255): 2
  • Max. incandescent lamp load (EF004952): 3000 W
  • Max. load fluorescent lamp (EF004971): 1360 VA
  • Max. load fluorescent lamp (Duo circuit) (EF004972): 2552 VA
  • Max. load fluorescent lamp (parallel compensated) (EF004973): 1360 VA
  • Slider for hand switch (EF005240): No
  • Width in number of modular spacings (EF002950): 2
  • Built-in depth (EF000218): 69.5 mm
  • Additional equipment possible (EF008148): Yes
  • With day/night function (EF021124): No

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
137402
Model Code
CMUC24/25-22
EAN
4015081341849
Product Length/Depth
85 mm
Product Height
60 mm
Product Width
35 mm
Product Weight
0.22 kg
Compliances
RoHS conform

Product specifications

Amperage Rating
25 A
Features
Additional equipment possible
Hum-free
Degree of protection
IP20
Equipment heat dissipation, current-dependent
7.5 W
Ambient operating temperature - max
60 °C
Ambient operating temperature - min
-40 °C
Heat dissipation capacity
0 W
Heat dissipation per pole, current-dependent
0 W
Incandescent lamp load - max
3000 W
Load fluorescent lamp - max
1360 VA
Load fluorescent lamp (duo circuit) - max
2552 VA
Load fluorescent lamp (parallel compensated) - max
1360 VA
Number of contacts (normally closed contacts)
2
Number of contacts (normally open contacts)
2
Number of modular spacings
2
Rated operating voltage (Ue) - max
440 V
Rated operating voltage (Ue) - min
440 V
Rated operational current for specified heat dissipation (In)
25 A
Static heat dissipation, non-current-dependent
0 W
Utility category
0
Voltage rating (excitation) - max
26.4 V
Voltage rating (excitation) - min
20.4 V
Built-in depth
69.5 mm
Voltage type
AC/DC
Utilization category (according to EN IEC 60947-4-1)
AC-1
