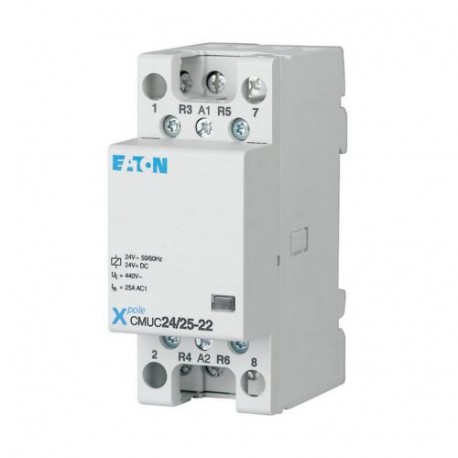

EATON - MOELLER CMUC24/25-04 CMUC24/25-04 137404 Y7-137404 EATON ELECTRIC Installation contactor, 24 VAC/DC, 4N/C, 25A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CMUC24/25-04 137404 Y7-137404 EATON ELECTRIC Installation contactor, 24 VAC/DC, 4N/C, 25A

CMUC24/25-04

137404

Y7-137404

EATON - MOELLER

1 Pcs.

Installation contactor, 24 VAC/DC, 4N/C, 25A CMUC24/25-04 Eaton Distribution parts. Installation contactor, 24 VAC/DC, 4N/C, 25A

Automation > Installation contactor for distribution board
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
137404
Model Code
CMUC24/25-04
EAN
4015081341863
Product Length/Depth
85 mm
Product Height
60 mm
Product Width
35 mm
Product Weight
0.22 kg
Compliances
RoHS conform

Product specifications

Amperage Rating
25 A
Features
Additional equipment possible
Hum-free
Degree of protection
IP20
Equipment heat dissipation, current-dependent
8 W
Ambient operating temperature - max
60 °C
Ambient operating temperature - min
-40 °C
Heat dissipation capacity
0 W
Heat dissipation per pole, current-dependent
0 W
Incandescent lamp load - max
3000 W
Load fluorescent lamp - max
1360 VA
Load fluorescent lamp (duo circuit) - max
2552 VA
Load fluorescent lamp (parallel compensated) - max
1360 VA
Number of contacts (normally closed contacts)
4
Number of contacts (normally open contacts)
0
Number of modular spacings
2
Rated operating voltage (Ue) - max
440 V
Rated operating voltage (Ue) - min
440 V
Rated operational current for specified heat dissipation (In)
25 A
Static heat dissipation, non-current-dependent
0 W
Utility category
0
Voltage rating (excitation) - max
26.4 V
Voltage rating (excitation) - min
20.4 V
Built-in depth
69.5 mm
Voltage type
AC/DC
Utilization category (according to EN IEC 60947-4-1)
AC-1

ETIM for 137404 Modular devices for distribution board/surface mounting (EC001653)
Feature Name Feature Value
Rated operating voltage (EF001435) 440 V
Rated operation current (EF007679) 25 A
Utilization category according to EN IEC 60947-4-1 (EF017125) AC-1
Rated excitation voltage (EF008409) 20.4 V
Voltage type (operating voltage) (EF005294) AC/DC
Voltage type (excitation voltage) (EF005293) AC/DC
Number of contacts as normally open contact (EF008256) 0
Number of contacts as normally closed contact (EF008255) 4
Max. incandescent lamp load (EF004952) 3000 W
Max. load fluorescent lamp (EF004971) 1360 VA
Max. load fluorescent lamp (Duo circuit) (EF004972) 2552 VA
Max. load fluorescent lamp (parallel compensated) (EF004973) 1360 VA
Slider for hand switch (EF005240) No
Width in number of modular spacings (EF002950) 2
Built-in depth (EF000218) 69.5 mm
Additional equipment possible (EF008148) Yes
With day/night function (EF021124) No
Hum-free (EF016334) Yes
Degree of protection (IP) (EF005474) IP20
