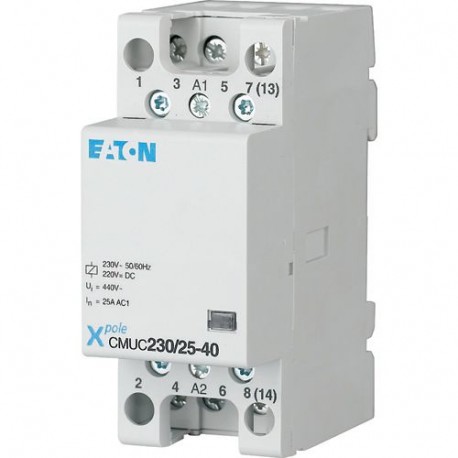

EATON - MOELLER CMUC230/25-40 CMUC230/25-40 137309 Y7-137309 EATON ELECTRIC Installation contactor, 230 VAC/DC, 4N/O, 25A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CMUC230/25-40 137309 Y7-137309 EATON ELECTRIC Installation contactor, 230 VAC/DC, 4N/O, 25A

CMUC230/25-40

137309

Y7-137309

EATON - MOELLER

1 Pcs.

Installation contactor, 230 VAC/DC, 4N/O, 25A CMUC230/25-40 Eaton Distribution parts. Installation contactor, 230 VAC/DC, 4N/O, 25A

Automation > Installation contactor for distribution board
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller CMUC230/25-40 installation contactor acts as an electromagnetic switching device designed for remote control and frequent switching of electrical loads in building management and industrial distribution panels. Installers rely on these heavy-duty contactors to safely manage lighting, heating circuits, and small motors from centralized control systems.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Manufacturer: Eaton Moeller
  • Manufacturer part number: CMUC230/25-40
  • Catalogue code: 137309
  • Product Length/Depth: 85 mm
  • Product Height: 60 mm
  • Product Width: 35 mm
  • Product Weight: 0.22 kg

More info

▲

General specifications

Product Name
Eaton Distribution parts
Catalog Number
137309
Model Code
CMUC230/25-40
EAN
4015081341818
Product Length/Depth
85 mm
Product Height
60 mm
Product Width
35 mm
Product Weight
0.22 kg
Compliances
RoHS conform

Product specifications

Amperage Rating
25 A
Features
Additional equipment possible
Hum-free
Degree of protection
IP20
Equipment heat dissipation, current-dependent
11.5 W
Ambient operating temperature - max
60 °C
Ambient operating temperature - min
-40 °C
Heat dissipation capacity
0 W
Heat dissipation per pole, current-dependent
0 W
Incandescent lamp load - max
3000 W
Load fluorescent lamp - max
1360 VA
Load fluorescent lamp (duo circuit) - max
2552 VA
Load fluorescent lamp (parallel compensated) - max
1360 VA
Number of contacts (normally closed contacts)
0
Number of contacts (normally open contacts)
4
Number of modular spacings
2
Rated operating voltage (Ue) - max
440 V
Rated operating voltage (Ue) - min
440 V
Rated operational current for specified heat dissipation (In)
25 A
Static heat dissipation, non-current-dependent
0 W
Utility category
0
Voltage rating (excitation) - max
253 V
Voltage rating (excitation) - min
195.5 V
Built-in depth
69.5 mm
Voltage type
AC/DC
Utilization category (according to EN IEC 60947-4-1)
AC-1
