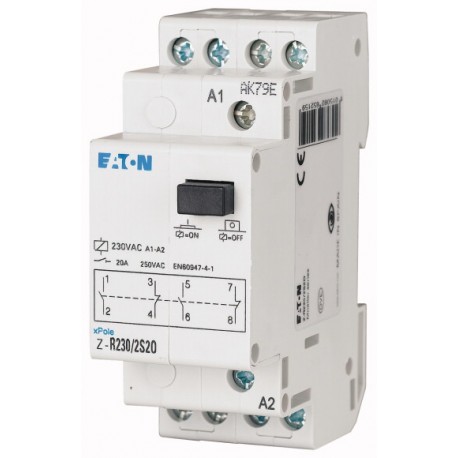

EATON - MOELLER Z-R/230/3S1O Z-R/230/3S1O 265221 0004355743 EATON ELECTRIC Installation relay, 230VAC/50Hz, 3N/O+1N/C, 20A, 2HP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

Z-R/230/3S1O 265221 0004355743 EATON ELECTRIC Installation relay, 230VAC/50Hz, 3N/O+1N/C, 20A, 2HP

Z-R/230/3S1O

265221

0004355743

EATON - MOELLER

1 Pcs.

Installation relay, 230VAC/50Hz, 3N/O+1N/C, 20A, 2HP Installation relay with manual operation, control voltage 230V 50Hz, function: 3 N/O + 1 N/C, rated operational current 20 A, 250V AC, type conform to IEC/EN 60947, standard front dimension 45 mm, mounting width 2 SU (35mm), top-hat rail mounting, terminal cross-section 0.5–10 mm² solid and flexible / 0.5–6 mm² flexible with ferrule

Automation > Installation relay
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller Z-R/230/3S1O 265221 0004355743 EATON ELECTRIC Installation relay, 230VAC/50Hz, 3N/O+1N/C, 20A, 2HP serves as an electromechanical switching relay designed to interface control systems with primary electrical loads in building management and industrial automation panels. These installation relays provide reliable continuous-duty switching capacity for diverse distribution tasks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Function (EF000030): Mechanical
  • Mounting method (EF000003): DIN rail
  • Width in number of modular spacings (EF002950): 2
  • Built-in depth (EF000218): 60 mm
  • Number of contacts as normally open contact (EF008256): 3
  • Number of contacts as normally closed contact (EF008255): 1
  • Number of contacts as change-over contact (EF008257): 0
  • Control voltage 1 (EF002952): 230 V
  • Type of control voltage 1 (EF002954): AC
  • Frequency control voltage 1 (EF002956): 50 Hz
  • Control voltage 2 (EF002953): 0 V
  • Type of control voltage 2 (EF002955): AC/DC
  • Frequency control voltage 2 (EF002957): 0 Hz
  • Rated current (EF000227): 20 A
  • Supply voltage (EF004127): 250 V
  • Voltage type (supply voltage) (EF002991): AC

More info

▲
Installation relay, 230VAC/50Hz, 3N/O+1N/C, 20A, 2HP
Installation relay with manual operation, control voltage 230V 50Hz, function: 3 N/O + 1 N/C, rated operational current 20 A, 250V AC, type conform to IEC/EN 60947, standard front dimension 45 mm, mounting width 2 SU (35mm), top-hat rail mounting, terminal cross-section 0.5–10 mm² solid and flexible / 0.5–6 mm² flexible with ferrule

Design verification as per IEC/EN 61439

Rated operational current for specified heat dissipation [In]
20 A
Heat dissipation per pole, current-dependent [Pvid]
2 W
Equipment heat dissipation, current-dependent [Pvid]
10.4 W
Operating ambient temperature min.
-20 °C
Operating ambient temperature max.
+45 °C

Technical data ETIM 7.0

Devices for distribution board-/surface mounting (EG000062) / Installation relay (EC001652)
Electric engineering, automation, process control engineering / Electrical installation, device / Modular serial built-in device for electrical circuit distributors / Installation relay for distribution board ([email protected] [AFZ821014])
Function
Mechanical
Mounting method
DIN rail
Width in number of modular spacings
2
Built-in depth
60 mm
Number of contacts as normally open contact
3
Number of contacts as normally closed contact
1
Number of contacts as change-over contact
0
Control voltage 1
230 - 230 V
Type of control voltage 1
AC
Frequency control voltage 1
50 - 50 Hz
Control voltage 2
0 - 0 V
Type of control voltage 2
AC/DC
Frequency control voltage 2
0 - 0 Hz
Rated current
20 A
Supply voltage
250 - 250 V
Voltage type of supply voltage
AC
Max. incandescent lamp load
0 W
Max. load fluorescent lamp
0 VA
Max. load fluorescent lamp (Duo circuit)
0 VA
Max. load fluorescent lamp (parallel compensated)
0 VA
Max. switching current (cos phi = 0.6)
0 A

Dimensions
