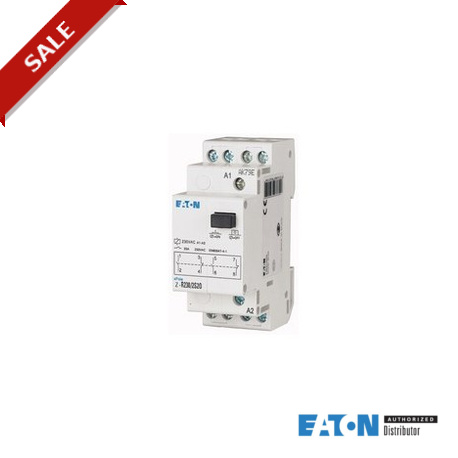

Z-R109/2S2O 265217 EATON ELECTRIC Installation relay, 110 V DC, 2N/O, 20A, 2HP
Z-R109/2S2O
265217
EATON - MOELLER
1 Pcs.
Installation relay, 110 V DC, 2N/O, 20A, 2HP
Installation relay with manual operation, control voltage 110V DC, function: 2 N/O + 2 N/C, rated operational current 20 A, 250V AC, type conform to IEC/EN 60947, standard front dimension 45 mm, mounting width 2 SU (35mm), top-hat rail mounting, terminal cross-section 0.5–10 mm² solid and flexible / 0.5–6 mm² flexible with ferrule
Automation > Installation relay
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Installation relay, 110 V DC, 2N/O, 20A, 2HP
Installation relay with manual operation, control voltage 110V DC, function: 2 N/O + 2 N/C, rated operational current 20 A, 250V AC, type conform to IEC/EN 60947, standard front dimension 45 mm, mounting width 2 SU (35mm), top-hat rail mounting, terminal cross-section 0.5–10 mm² solid and flexible / 0.5–6 mm² flexible with ferrule
Design verification as per IEC/EN 61439
Rated operational current for specified heat dissipation [In]
20 A
Heat dissipation per pole, current-dependent [Pvid]
2 W
Equipment heat dissipation, current-dependent [Pvid]
10.4 W
Operating ambient temperature min.
-20 °C
Operating ambient temperature max.
+45 °C
Technical data ETIM 7.0
Devices for distribution board-/surface mounting (EG000062) / Installation relay (EC001652)
Electric engineering, automation, process control engineering / Electrical installation, device / Modular serial built-in device for electrical circuit distributors / Installation relay for distribution board ([email protected] [AFZ821014])
Function
Mechanical
Mounting method
DIN rail
Width in number of modular spacings
2
Built-in depth
60 mm
Number of contacts as normally open contact
2
Number of contacts as normally closed contact
2
Number of contacts as change-over contact
0
Control voltage 1
0 - 0 V
Type of control voltage 1
DC
Type of control voltage 1
DC
Frequency control voltage 1
0 - 0 Hz
Control voltage 2
0 - 0 V
Type of control voltage 2
AC/DC
Frequency control voltage 2
0 - 0 Hz
Rated current
20 A
Supply voltage
250 - 250 V
Voltage type of supply voltage
AC
Max. incandescent lamp load
0 W
Max. load fluorescent lamp
0 VA
Max. load fluorescent lamp (Duo circuit)
0 VA
Max. load fluorescent lamp (parallel compensated)
0 VA
Max. switching current (cos phi = 0.6)
0 A
| Feature Name | Feature Value |
|---|---|
| Function (EF000030) | Mechanical |
| Mounting method (EF000003) | DIN rail |
| Width in number of modular spacings (EF002950) | 2 |
| Built-in depth (EF000218) | 60 mm |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Control voltage 1 (EF002952) | 0 V |
| Frequency control voltage 1 (EF002956) | 0 Hz |
| Control voltage 2 (EF002953) | 0 V |
| Frequency control voltage 2 (EF002957) | 0 Hz |
| Rated current (EF000227) | 20 A |
| Supply voltage (EF004127) | 250 V |
| Voltage type (supply voltage) (EF002991) | AC |
| Max. incandescent lamp load (EF004952) | 0 W |
| Max. load fluorescent lamp (EF004971) | 0 VA |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | 0 VA |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | 0 VA |
| Max. switching current (cos phi = 0.6) (EF004920) | 0 A |
