View larger
Images are for illustrative purposes only. Please refer to data sheet for details

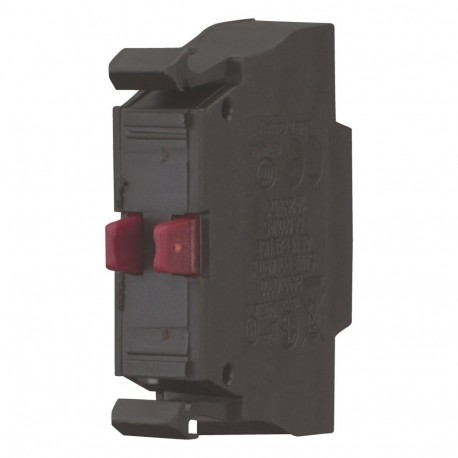

M22-CK02 107899 Y7-107899 EATON ELECTRIC Contact element, 2 N/C, front mount, spring clamp connection
M22-CK02
107899
Y7-107899
EATON - MOELLER
1 Pcs.
Contact element, 2 N/C, front mount, spring clamp connection
M22-CK02
Eaton Moeller® series M22 Contact element, Cage Clamp, Front fixing, 2 NC, 24 V 3 A, 220 V 230 V 240 V 4 A
Contact element, Standard/Approval: UL/CSA, IEC, Construction size: NZM1/2/3/4, Connection technique: Cage Clamp, Fixing: Front fixing, Description: When using emergency switching off actuators M22-PV… max. 2 contact elements = 4 NC / N/O contacts, Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Contacts N/C = Normally closed: 2 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 20, Degree of Protection: IP20, Connection to SmartWire-DT: no , Connection type: Double contact, Description of HIA trip-indicating auxiliary contact: General trip indication '+', when tripped by shunt release, o
Automation > Auxiliary contact block
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory Contact element
Catalog Number
107899
Model Code
M22-CK02
EAN
4015081075362
Product Length/Depth
43 mm
Product Height
10 mm
Product Width
38 mm
Product Weight
0.012 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-05
IEC 60947-5
CSA Std. C22.2 No. 94-91
UL 508
EN 60947-5
CE
CSA File No.: 012528
UL/CSA
CSA
CSA Class No.: 3211-03
IEC 60947-5-1
UL
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
IEC
UL File No.: E29184
IEC/EN 60947-5
UL Category Control No.: NKCR
IEC 60947-5
CSA Std. C22.2 No. 94-91
UL 508
EN 60947-5
CE
CSA File No.: 012528
UL/CSA
CSA
CSA Class No.: 3211-03
IEC 60947-5-1
UL
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
IEC
UL File No.: E29184
IEC/EN 60947-5
UL Category Control No.: NKCR
| Feature Name | Feature Value |
|---|---|
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as normally closed contact (EF008255) | 2 |
| Number of fault-signal switches (EF007613) | 0 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 6 A |
| Type of electric connection (EF003961) | Spring clamp connection |
| Model (EF000010) | Top mounting and integrable |
| Mounting method (EF000003) | Front fastening |
| Lamp holder (EF000048) | None |
