View larger
Images are for illustrative purposes only. Please refer to data sheet for details

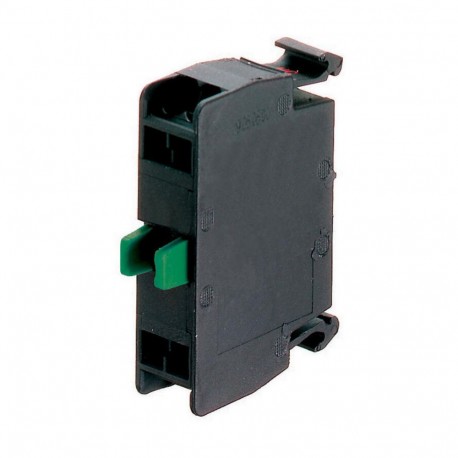

M22-CKC10 216386 Y7-216386 EATON ELECTRIC Contact element, 1N/O, base fixing, 6. contact, spring clamp conne..
M22-CKC10
216386
Y7-216386
EATON - MOELLER
20 Pcs.
Contact element, 1N/O, base fixing, 6. contact, spring clamp connection
M22-CKC10
Eaton Moeller® series M22 Contact element, Cage Clamp, Base fixing, 1 N/O, 24 V 3 A, 220 V 230 V 240 V 6 A
Contact element, Connection technique: Cage Clamp, Fixing: Base fixing, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Contacts N/O = Normally open: 1 N/O, Degree of Protection: IP20, Connection to SmartWire-DT: no, Connection type: Single contact, Standards: IEC 60947-5-1
Automation > Auxiliary contact block
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Accessory Contact element
Catalog Number
216386
Model Code
M22-CKC10
EAN
4015082163860
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
32 mm
Product Weight
0.01 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-05
EN 60947-5
IEC 60947-5
CSA Std. C22.2 No. 94-91
UL 508
CE
CSA File No.: 012528
CSA-C22.2 No. 94-91
UL File No.: E29184
CSA Class No.: 3211-03
UL
IEC 60947-5-1
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
CSA
IEC/EN 60947-5
EN 60947-5
IEC 60947-5
CSA Std. C22.2 No. 94-91
UL 508
CE
CSA File No.: 012528
CSA-C22.2 No. 94-91
UL File No.: E29184
CSA Class No.: 3211-03
UL
IEC 60947-5-1
CSA-C22.2 No. 14-05
UL Category Control No.: NKCR
CSA
IEC/EN 60947-5
| Feature Name | Feature Value |
|---|---|
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of fault-signal switches (EF007613) | 0 |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 6 A |
| Type of electric connection (EF003961) | Spring clamp connection |
| Model (EF000010) | Clip-on |
| Mounting method (EF000003) | Floor fastening |
| Lamp holder (EF000048) | None |
