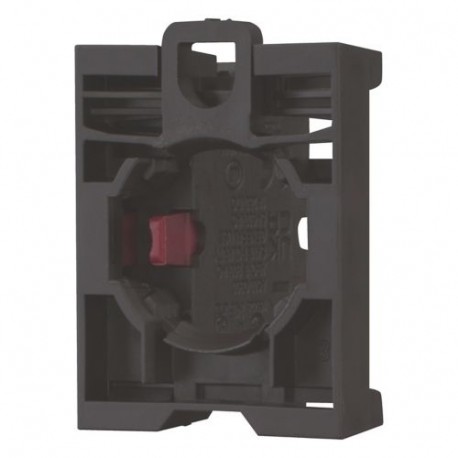

M22-AK01 216503 Y7-216503 EATON ELECTRIC Contact element, 1 N/C, front mount, screw connection
M22-AK01
216503
Y7-216503
EATON - MOELLER
5 Pcs.
Automation > Auxiliary contact block
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
M22-AK01 216503 Y7-216503 EATON ELECTRIC Contact element, 1 N/C, front mount, screw connection is a standard contact block used with control and signaling devices on industrial control panels. Installers utilize these screw-connection elements to interrupt control circuits during machine operation sequences.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of contacts as change-over contact (EF008257): 0
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 1
- Number of fault-signal switches (EF007613): 0
- Rated operation current Ie at AC-15, 230 V (EF001385): 6 A
- Type of electric connection (EF003961): Screw connection
- Model (EF000010): Clip-on
- Mounting method (EF000003): Front fastening
More info
▲General specifications
CSA
CSA-C22.2 No. 94-91
IEC/EN 60947-5
UL Category Control No.: NKCR
CE
IEC 60947-5-1
UL 508
CSA-C22.2 No. 14-05
UL File No.: E29184
CSA Class No.: 3211-03
CSA File No.: 012528
Features & Functions
General
1,600,000 Operations (at 230 V, 0.5 A)
1,200,000 Operations (at 12 V, DC-13, 2.8 A)
1,000,000 Operations (at 230 V, AC-15, 1 A)
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Terminal capacities
Electrical rating
Short-circuit rating
Communication
Screw connection
Actuator
Contacts
1 failure per 5,000,000 switching operations (statistically determined, at 5 V DC/1 mA)
