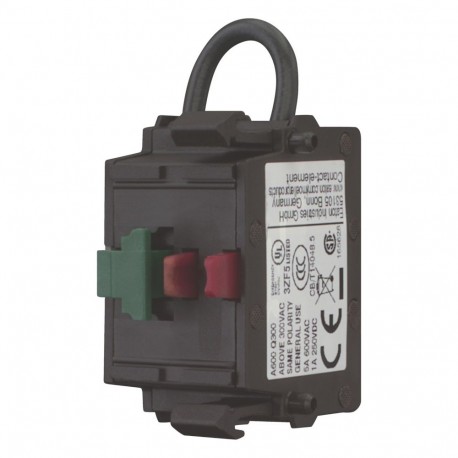

EATON - MOELLER M22-K01SMC10 M22-K01SMC10 121472 Y7-121472 EATON ELECTRIC Contact element, 1 N/C, front mount, screw connection View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-K01SMC10 121472 Y7-121472 EATON ELECTRIC Contact element, 1 N/C, front mount, screw connection

M22-K01SMC10

121472

Y7-121472

EATON - MOELLER

5 Pcs.

Contact element, 1 N/C, front mount, screw connection M22-K01SMC10 Eaton Moeller® series M22 Self-monitoring contact elements, Screw terminals, Front fixing, 1 N/O, 1 NC, 24 V 3 A Contact element, Connection technique: Screw terminals, Fixing: Front fixing, Description: The N/O is actuated when mounted on the pushbutton., Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1

Automation > Auxiliary contact block
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Contact element
Catalog Number
121472
Model Code
M22-K01SMC10
EAN
4015081192908
Product Length/Depth
35 mm
Product Height
51 mm
Product Width
23 mm
Product Weight
0.021 kg
Compliances
CE Marked
Certifications
UL 508
CSA Std. C22.2 No. 14-05
EN 60947-5
CSA Std. C22.2 No. 94-91
IEC 60947
CSA Class No.: 3211-03
IEC 60947-5-1
CSA File No.: 012528_C_000
IEC/EN 60947-5
UL
UL Category Control No.: NISD
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
CE
UL File No.: E340491
CSA
Catalog Notes
Contacts with safety function, by positive opening to IEC/EN 60947-5-1

ETIM for 121472 Low-voltage industrial controls and switchgear (EC000041)
Feature Name Feature Value
Number of contacts as change-over contact (EF008257) 0
Number of contacts as normally open contact (EF008256) 1
Number of contacts as normally closed contact (EF008255) 1
Number of fault-signal switches (EF007613) 0
Rated operation current Ie at AC-15, 230 V (EF001385) 6 A
Type of electric connection (EF003961) Screw connection
Model (EF000010) Clip-on
Mounting method (EF000003) Front fastening
Lamp holder (EF000048) None

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
