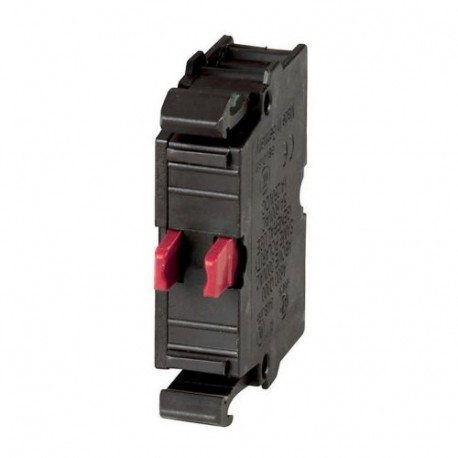

EATON - MOELLER M22-CK01 M22-CK01 216385 Y7-216385 EATON ELECTRIC Contact element, 1 N/C, front mount, 6. contact, spring clamp conne.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-CK01 216385 Y7-216385 EATON ELECTRIC Contact element, 1 N/C, front mount, 6. contact, spring clamp conne..

M22-CK01

216385

Y7-216385

EATON - MOELLER

20 Pcs.

Contact element, 1 N/C, front mount, 6. contact, spring clamp connection M22-CK01 Eaton Moeller® series M22 Contact element, Cage Clamp, Front fixing, 1 NC, 24 V 3 A, 220 V 230 V 240 V 6 A Contact element, Standard/Approval: UL/CSA, IEC, Construction size: NZM1/2/3/4, Connection technique: Cage Clamp, Fixing: Front fixing, Description: Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Degree of Protection: IP20, Connection to SmartWire-DT: no, Connection type: Single contact , Description of HIA trip-indicating auxiliary contact: General trip indication '+', when tripped by shunt release, overload release, short-circuit release or by the residual-current release due to residual-current.,

Automation > Auxiliary contact block
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A contact element, the Eaton Moeller M22-CK01 manages control signals behind operator pushbuttons in machine building and process control environments. These modular switching blocks mount securely behind control station actuators to open or close secondary circuits upon operator actuation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Number of contacts as normally closed contact (EF008255): 1
  • Number of fault-signal switches (EF007613): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 6 A
  • Type of electric connection (EF003961): Spring clamp connection
  • Model (EF000010): Top mounting and integrable
  • Mounting method (EF000003): Front fastening

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Accessory Contact element
Catalog Number
216385
Model Code
M22-CK01
EAN
4015082163853
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
32 mm
Product Weight
0.01 kg
Compliances
CE Marked
Certifications
EN 60947-5
CSA Std. C22.2 No. 94-91
IEC 60947-5
CSA Std. C22.2 No. 14-05
UL 508
IEC/EN 60947-5
CSA
UL Category Control No.: NKCR
UL/CSA
CSA-C22.2 No. 14-05
CE
UL
UL File No.: E29184
CSA Class No.: 3211-03
CSA File No.: 012528
CSA-C22.2 No. 94-91
IEC
IEC 60947-5-1

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
