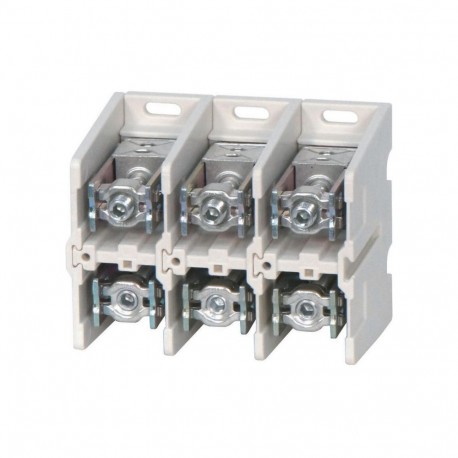

EATON - MOELLER K240/3 K240/3 039255 Y7-39255 EATON ELECTRIC Connection terminal, 400A, 3p, flat/round View larger
Images are for illustrative purposes only. Please refer to data sheet for details

K240/3 039255 Y7-39255 EATON ELECTRIC Connection terminal, 400A, 3p, flat/round

K240/3

039255

Y7-39255

EATON - MOELLER

1 Pcs.

Connection terminal, 400A, 3p, flat/round Terminal Connection, 400A, 3P, Flat/Round Eaton xEffect K-Type Terminal Enclosures Switch- & Controlgear Enclosure. Connection terminal, 400A, 3p, flat/round K connecting terminals, for AL and CU, one side round and the other side flat, rated operational current Ie=400 A, poles=3, terminal capacities: Copper round cable stranded, sectoral stranded, round cable solid, sectoral solid, round cable solid, sectoral solid=1x50-240 or 2x25-120mm² or aluminum, sectoral solid=1x95-185 or 2x50-95mm². Other side: copper band 6x16x0.8 to 10x16x0.8 or Cu bar=25x15 mm, notes: Conversion kits for strip terminal in cable connection available separately, terminal covers available separately

Automation > Rail terminal bar
Connection Accessories for Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton xEffect K-Type Terminal Enclosures Switch- & Controlgear Enclosure
Catalog Number
039255
Model Code
K240/3
EAN
4015080392552
Product Length/Depth
100 mm
Product Height
115 mm
Product Width
144 mm
Product Weight
2.701 kg
Compliances
RoHS conform

Delivery programme

Type
Accessory/spare part type
Terminals, 160 – 1000 A
Terminations
Nominal current
400 A
Number of poles
Three-pole

Technical data - electrical

Rated insulation voltage (Ui)
1000 VAC
Rated operation current (Ie)
400 A

Technical data - mechanical

Mounting method
Screw
Number of connections (10 mm squared)
0
Number of connections (16 mm squared)
0
Number of connections (25 mm squared)
0
Number of connections (250 kcmil)
0
Number of connections (Less Than 6 mm squared)
0
Number of connections (Less Than AWG 6)
0
Number of connections (Greater Than 25 mm squared)
6
Number of connections (Greater Than 250 kcmil)
0
Number of connections (AWG 2)
0
Number of connections (AWG 4)
0
Number of connections (AWG 4/0)
0
Number of connections (AWG 6)
0
Number of connections (total)
6
Number of inputs
1
Number of outputs
2
Terminal capacity (aluminum cable)
50 mm² - 95 mm² (2x)
95 mm² - 185 mm² (1x)
Terminal capacity (conductor)
25 mm x 15 mm
Terminal capacity (copper band)
16 mm x 0.8 mm (6x) for flat strip
16 mm x 0.8 mm (10x) for flat strip
Terminal capacity (copper/aluminum cable)
25 mm² - 120 mm² (2x)
50 mm² - 240 mm² (1x)
Conductor cross section, input - min
25 mm²
Conductor cross section, input - max
120 mm²
Conductor cross section, input AWG - min
4 mm²
Conductor cross section, input AWG - max
4 mm²
Conductor cross section, output - min
25 mm²
Conductor cross section, output - max
240 mm²
Conductor cross section, output AWG - min
0 mm²
Conductor cross section, output AWG - max
0 mm²

Additional information

Features
Contact safe
Special features
  • Conversion kits for strip terminal in cable connection available separately
  • Terminal covers available separately
  • Including labels for terminal marking U, V, W - X, Y, Z - L1, L2, L3 - T1, T2, T3 - PE, N, PEN, protective earth (ground) symbol
  • Relationship of rated operational current →terminal capacity to IEC/EN 60439, VDE 0660 Part 500 or EN 50021
  • Outer terminal for round or sectoral conductor, other side for Cu strip
Suitable for
Useful for stranded conductors
Fine strand conductors
Used with
Accessory panel building
General switchboard accessory

ETIM for 039255 Power distribution systems (EC000275)
Feature Name Feature Value
Number of poles (EF001391) 3
Nominal current (EF000001) 400 A
Connection type (EF000124) Screwing
Mounting method (EF000003) Screw
Number of inputs (EF000318) 1
Number of outputs (EF000319) 2
Suitable for solid conductors (EF007816) No
Suitable for stranded conductors (EF007818) Yes
Suitable for fine strand conductors (EF007804) Yes
Suitable for fine strand conductors without cable end sleeve (EF016327) No
Suitable for extra fine-strand conductors (EF016328) No
Suitable for extra fine-strand conductors without cable end sleeve (EF016329) No
Conductor cross section, input (EF016330) 25 mm²
Conductor cross section, output (EF016331) 25 mm²
Conductor cross section, input AWG (EF016332) 4
Conductor cross section, output AWG (EF016333) 0
Contact safe (EF004521) Yes
Height (EF000040) 115 mm
Width (EF000008) 144 mm
Depth (EF000049) 100 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
