EATON - MOELLER CSDR4A4CY2203-D CSDR4A4CY2203-D 136315 Y7-136315 EATON ELECTRIC Connection cable, 4p, DC current, coupling M12 flat, plug, a.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CSDR4A4CY2203-D 136315 Y7-136315 EATON ELECTRIC Connection cable, 4p, DC current, coupling M12 flat, plug, a..

CSDR4A4CY2203-D

136315

Y7-136315

EATON - MOELLER

1 Pcs.

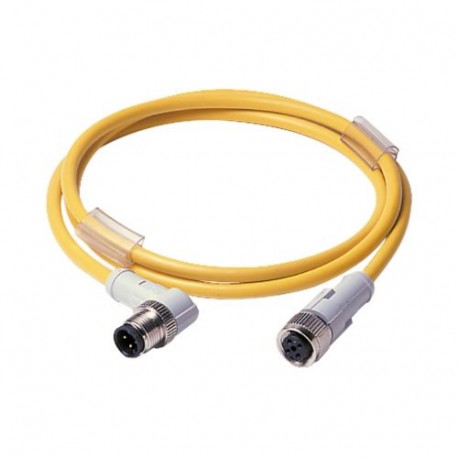

Connection cable, 4p, DC current, coupling M12 flat, plug, angled, L=3m CSDR4A4CY2203-D Eaton Moeller® series CSDR Connection cable, 4p, DC current, coupling M12 flat, plug, angled, L=3m Connecting cable, Basic function: Accessories, Length: 3000 mm, Voltage type: DC, 4 pole, Style output side: Plug, angled, Style input side: Coupling, straight, For use with: DC sensors, 4 pole, 2, 3 or 4-wire connection, M12

Automation > Sensor-actuator patch cord
Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series CSDR Accessory Connection cable
Catalog Number
136315
Model Code
CSDR4A4CY2203-D
EAN
4015081330973
Product Length/Depth
165.1 mm
Product Height
12.7 mm
Product Width
165.1 mm
Product Weight
0.09 kg
Certifications
CE

Product specifications

Type
Connecting cables
Number Of Poles
Four-pole
Cable type
Plug, angled, Output side
Multi-core
Coupling, straight, Input side
Contact surface material
Other
Rated operational voltage (Ue) - max
0 V
Product category
Accessories
Voltage type
DC
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Continuity resistor
0 mΩ
Nominal current
0 A
Cable length
3 m
Cable sheath material
Other
Degree of protection
Other
Color cable sheath
Yellow
Electrical connection type (box-sided)
M12
Electrical connection type (field-sided)
M12
Contact body material
Other
Permitted temperature of outer cable (assembled) without vibration - max
70 °C
Permitted temperature of outer cable (assembled) without vibration - min
40 °C
Permitted temperature of outer cable (assembling/handling) - max
70 °C
Permitted temperature of outer cable (assembling/handling) - min
40 °C
Plug-in contact type (box-sided)
Male (plug)
Plug-in contact type (field-sided)
Female (bus)
Positioning cable feed (box-sided)
Angled
Positioning cable feed (field-sided)
Straight

ETIM for 136315 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Female (bus)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Angled
Cable length (EF000536) 3 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) No
Colour cable sheath (EF008249) Yellow
With LED indication (EF005950) No
Screened (EF000881) No
Cable type (EF000081) Multi-core
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) 40 °C
Permitted cable outer temperature during assembling/handling (EF001685) 40 °C
Rated current In (EF008250) 0 A
Rated voltage (EF000228) 0 V
Continuity resistance (EF003992) 0 mOhm
Degree of protection (IP) (EF005474) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
