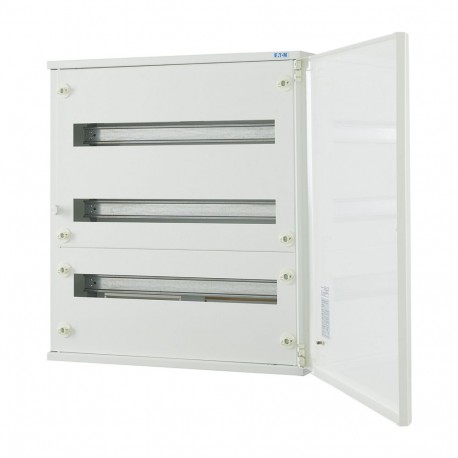

BF-O-3/72-A 240733 EATON ELECTRIC Complete surface-mounted flat distribution board, white, 24 SU per row, 3 ..
BF-O-3/72-A
240733
EATON - MOELLER
1 Pcs.
Automation > Small distribution board
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller part number BF-O-3/72-A is a complete surface-mounted flat distribution board engineered to house multiple rows of modular circuit protection devices cleanly against finished walls. Panel builders utilize flat distribution boards to consolidate incoming power feeds and branch circuits within a secure, low-profile metallic enclosure.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mounting method (EF000003): Surface mounted
- Number of rows (EF000266): 3
- Width in number of modular spacings (EF002950): 24
- Type of covering (EF000339): Door
- Cover model (EF009212): Closed
- Type of door (EF004464): EV000426
- Transparent cover/door (EF006244): No
- Signal passing door (EF015941): No
- With lock (EF006306): No
- Housing material (EF001596): Steel
- Built-in depth (EF000218): 150 mm
- Built-in height (EF000332): 610 mm
- Built-in width (EF000846): 555 mm
- Inner depth (EF001131): 131 mm
- Earthing terminal block (EF015776): Yes
- Neutral terminal block (EF015777): Yes
More info
▲Delivery program
Protection Class I
Steel sheet enclosure white (RAL 9016)
PE: 2 x 25 + 27 x 16 mm2
Door with three-point turn-lock
DIN rail mounting frame
Cable gland plate inserts (top)
Front plates
Neutral-/protective conductor terminal
