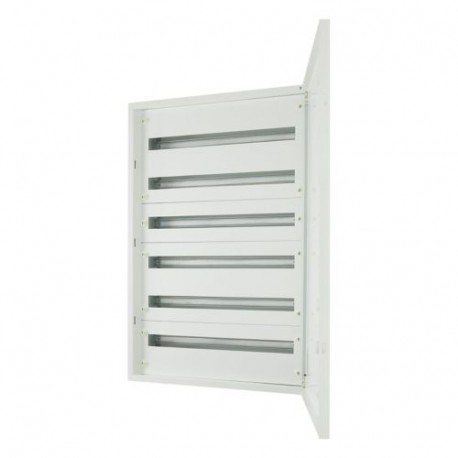

BF-U-6/198-A 240747 EATON ELECTRIC Complete flush-mounted flat distribution board, white, 33 SU per row, 6 r..
BF-U-6/198-A
240747
EATON - MOELLER
1 Pcs.
Automation > Small distribution board
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller BF-U-6/198-A complete flush-mounted flat distribution board is built for hollow wall installations, allowing seamless integration of high-density modular switchgear. Hollow wall distribution enclosures provide secure mounting points and tidy cable routing for commercial building automation.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mounting method (EF000003): Hollow wall
- Number of rows (EF000266): 6
- Width in number of modular spacings (EF002950): 33
- Type of covering (EF000339): Door
- Cover model (EF009212): Closed
- Type of door (EF004464): EV000426
- Transparent cover/door (EF006244): No
- Signal passing door (EF015941): No
- With lock (EF006306): No
- Housing material (EF001596): Steel
- Built-in depth (EF000218): 140 mm
- Built-in height (EF000332): 1080 mm
- Built-in width (EF000846): 760 mm
- Inner depth (EF001131): 127 mm
- Earthing terminal block (EF015776): Yes
- Neutral terminal block (EF015777): Yes
More info
▲Delivery program
Flush mounted
Protection Class I
Steel sheet enclosure white (RAL 9016)
PE: 2 x 25 + 74 x 16 mm2
Door with three-point turn-lock
DIN rail mounting frame
Front plates
Neutral-/protective conductor terminal
Technical data
Design verification as per IEC/EN 61439
Technical data ETIM 7.0
Dimensions
Height H1 [mm] = 1020
