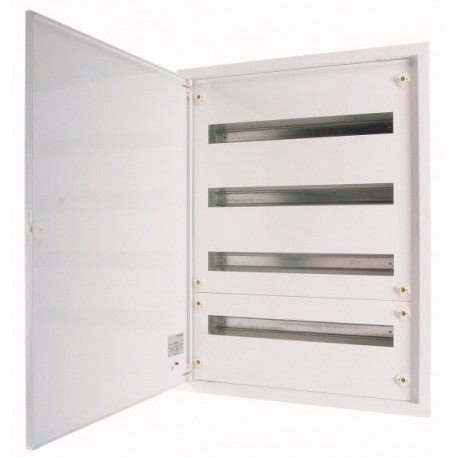

BF-U-5/165-A 240746 EATON ELECTRIC Complete flush-mounted flat distribution board, white, 33 SU per row, 5 r..
BF-U-5/165-A
240746
EATON - MOELLER
1 Pcs.
Automation > Small distribution board
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Complete flush-mounted flat distribution board, white, 33 SU per row, 5 r.. supplied by Eaton Moeller as BF-U-5/165-A operates as an architectural distribution hub for managing modular switching and protection devices within recessed wall installations. These systems provide clean space management and robust physical security for complex electrical circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mounting method (EF000003): Hollow wall
- Number of rows (EF000266): 5
- Width in number of modular spacings (EF002950): 33
- Type of covering (EF000339): Door
- Cover model (EF009212): Closed
- Type of door (EF004464): EV000426
- Transparent cover/door (EF006244): No
- Signal passing door (EF015941): No
- With lock (EF006306): No
- Housing material (EF001596): Steel
- Built-in depth (EF000218): 127 mm
- Built-in height (EF000332): 870 mm
- Built-in width (EF000846): 720 mm
- Inner depth (EF001131): 127 mm
- Earthing terminal block (EF015776): Yes
- Neutral terminal block (EF015777): Yes
More info
▲Delivery program
Flush mounted
Protection Class I
Steel sheet enclosure white (RAL 9016)
PE: 2 x 25 + 74 x 16 mm2
Door with three-point turn-lock
DIN rail mounting frame
Front plates
Neutral-/protective conductor terminal
Technical data
Design verification as per IEC/EN 61439
Technical data ETIM 7.0
Dimensions
Height H1 [mm] = 870
