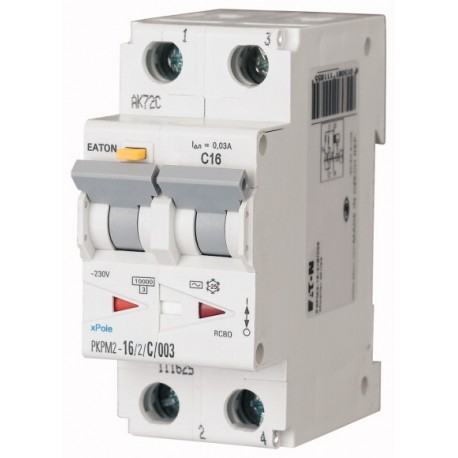

PKPM2-16/2/C/003 111625 EATON ELECTRIC RCD/MCB, 16A, 30mA, miniature circuit-breaker trip curve C, 2 p, resi..
PKPM2-16/2/C/003
111625
EATON - MOELLER
1 Pcs.
Automation > Earth leakage circuit breaker
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed by Eaton Moeller, the PKPM2-16/2/C/003 is an RCD/MCB unit configured to deliver combined overcurrent and earth leakage protection within commercial or industrial electrical distribution networks. This device safely disconnects power when facing abnormal current draws or residual faults, preventing damage to downstream infrastructure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of poles (total) (EF008618): 2
- Number of protected poles (EF005548): 2
- Rated voltage (EF000228): 230 V
- Rated insulation voltage Ui (EF001366): 250 V
- Rated impulse withstand voltage Uimp (EF011980): 4 kV
- Rated current (EF000227): 16 A
- Rated fault current (EF002358): 0.03 A
- Leakage current type (EF002560): AC
- Current limiting class (EF002568): 3
- Disconnection characteristic (EF012587): Undelayed
- Surge current capacity (EF002564): 0.25 kA
- Voltage type (EF000187): AC
- Frequency (EF005455): 50 Hz
- Release characteristic (EF000889): C
- Concurrently switching neutral conductor (EF005997): No
- With interlocking device (EF007385): No
