View larger
Images are for illustrative purposes only. Please refer to data sheet for details
M22-XC-R 216406 Y7-216406 EATON ELECTRIC 216406 M22-XC-R
M22-XC-R
216406
Y7-216406
EATON - MOELLER
1 Pcs.
216406 M22-XC-R
M22-XC-R

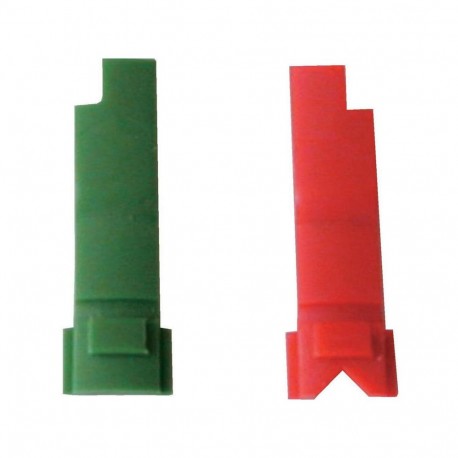

Eaton Moeller® series M22 Coding part M22-XC-R
Coded partial set for converting between maintained and spring-return function and key withdraw with key-operated button of the RQM system 22.3 mm
Automation > Accessories/spare parts for command devices
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
| Product Name | Eaton Moeller® series M22 coding kit |
| Catalog Number | 216406 |
| Model Code | M22-XC-R |
| EAN | 4015082164065 |
| Product Length/Depth | 19 mm |
| Product Height | 16 mm |
| Product Width | 11 mm |
| Product Weight | 0.002 kg |
| Certifications | UL/CSA certification not required |
| Catalog Notes | Not for key-operated button for master key systems |
Product specifications
| Accessory/spare part type | Accessory |
| 10.10 Temperature rise | Not applicable. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Connection to SmartWire-DT | No |
| Functions | For changing the key withdraw |
| Electrical accessory type | Other |
| Mechanical accessory type | Other |
| Ambient operating temperature - max | 70 °C |
| Ambient operating temperature - min | -25 °C |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Force for positive opening - min | 0 N |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| Feature Name | Feature Value |
|---|---|
| Type of electrical accessory/spare part (EF005722) | Other |
| Type of mechanical accessory/spare part (EF005994) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
