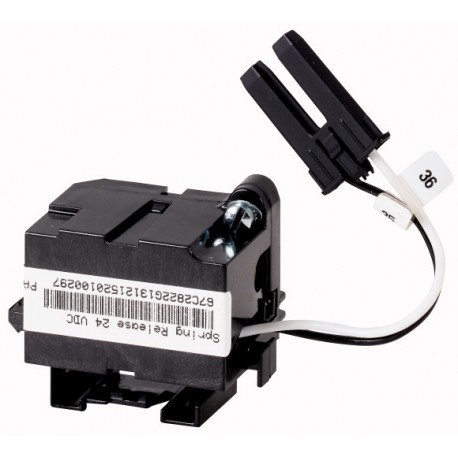

+IZMX-SR24DC 123735 EATON ELECTRIC Closing release 24 VDC
+IZMX-SR24DC
123735
EATON - MOELLER
1 Pcs.
Automation > Shunt release (for power circuit breaker)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
+IZMX-SR24DC 123735 EATON ELECTRIC Closing release 24 VDC operates as an internal control accessory designed to remotely energize and close industrial air circuit breakers. System designers incorporate these electromagnetic actuators into main switchboards to facilitate automated power restoration and remote switching. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated control supply voltage AC 50 Hz (EF003978): 0 V
- Rated control supply voltage AC 60 Hz (EF003979): 0 V
- Rated control supply voltage DC (EF003980): 24 V
- Voltage type for actuating (EF008242): DC
- Type of electric connection (EF003961): Flat plug-in connection
- Number of contacts as normally open contact (EF008256): 0
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as change-over contact (EF008257): 0
- Suitable for power circuit breaker (EF005863): Yes
- Suitable for off-load switch (EF001543): Yes
- Suitable for motor safety switch (EF005826): No
- Suitable for overload relay (EF001545): No
More info
▲Delivery program
Please note - the circuit-breaker's switching frequency = 60/h
INX16..., INX40...
Suitable for continuous commands (100% DF)
The ON command can only be accepted if the circuit-breaker is OFF and ready to be switched. If, for example, there is a 100% DF signal at the closing release and the circuit-breaker interlock is then removed, the circuit-breaker will not switch ON. However, this can be ensured automatically by connecting it in series with an LCS auxiliary contact.
