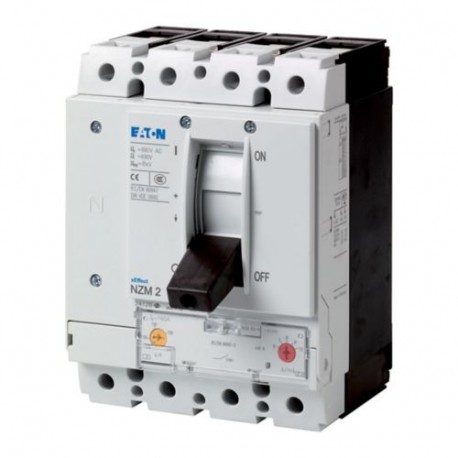

NZMB2-4-AF175-BT-NA 113013 Y7-113013 EATON ELECTRIC Circuit-breaker, 4p, 175A, box terminals
NZMB2-4-AF175-BT-NA
113013
Y7-113013
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller circuit-breaker, listed as NZMB2-4-AF175-BT-NA 113013 Y7-113013, provides dependable automatic interruption of abnormal current conditions in commercial electrical configurations. It protects wiring and downstream apparatus from potential overloads and short circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 175 A
- Rated voltage (EF003977): 440 V
- Overload release current setting (EF002336): 175 A
- Adjustment range undelayed short-circuit release (EF007131): 6 A
- Power loss (EF005387): None W
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): false
- Type of electrical connection of main circuit (EF006819): Frame clamp
- Suitable for DIN rail (top hat rail) mounting (EF007250): false
- DIN rail (top hat rail) mounting optional (EF008904): true
- With switched-off indicator (EF007006): false
- With integrated under voltage release (EF001390): false
- Number of poles (EF001391): 4
- Position of connection for main current circuit (EF006671): Front side
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): true
More info
▲General specifications
IEC/EN 60947
IEC 60947-2
UL 489
UL/CSA
UL listed
CSA-C22.2 No. 5-09
IEC
UL (Category Control Number DIVQ)
UL (File No. E31593)
CE marking
Product specifications
- Branch circuits, feeder circuits
- Use in unearthed supply systems at 440 V
Protection unit
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
Damp heat, constant, to IEC 60068-2-78
500 V AC (between auxiliary contacts and main contacts)
IP20
175 A (660-690 V AC-3, making and breaking capacity)
300 A (415 V AC-1, making and breaking capacity)
IP66 (with door coupling rotary handle)
IP10 (tunnel terminal)
Max. 10 segments of 16 mm x 0.8 mm at rear-side connection (punched)
Min. 2 segements of 16 mm x 0.8 mm at rear-side connection (punched)
Max. 10 segments of 16 mm x 0.8 mm at box terminal
10000 operations at 415 V AC-1
7500 operations at 400 V AC-1
System and cable protection
16 mm² - 18 mm² (2x)
M8 at rear-side screw connection
Min. 16 mm x 5 mm direct at switch rear-side connection
6 mm² - 11 mm² (1x) direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
4 mm² - 3/0 mm² (1x) direct at switch rear-side connection
4 mm² - 350 mm² (1x) at tunnel terminal
