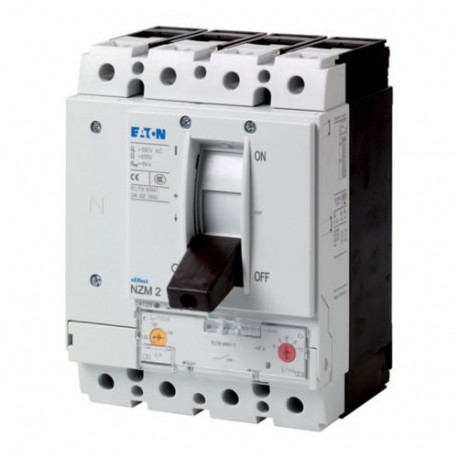

NZMH2-4-A160 265871 Y7-265871 EATON ELECTRIC Circuit-breaker, 4p, 160A
NZMH2-4-A160
265871
Y7-265871
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Operating as a multi-pole switching and protective device, the Eaton Moeller NZMH2-4-A160 265871 Y7-265871 EATON ELECTRIC Circuit-breaker, 4p, 160A, referenced by part number NZMH2-4-A160, is utilized to interrupt electrical current during overloads or short circuits in industrial power circuits. Circuit breakers of this type provide essential safeguards for electrical distribution equipment and downstream systems.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 160 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 125 A
- Adjustment range undelayed short-circuit release (EF007131): 6 A
- Power loss (EF005387): None W
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): false
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): false
- DIN rail (top hat rail) mounting optional (EF008904): true
- With switched-off indicator (EF007006): false
- With integrated under voltage release (EF001390): false
- Number of poles (EF001391): 4
- Position of connection for main current circuit (EF006671): Front side
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): true
More info
▲General specifications
IEC/EN 60947
Product specifications
Protection unit
DIN rail (top hat rail) mounting optional
Built-in device fixed built-in technique
Damp heat, constant, to IEC 60068-2-78
300 V AC (between the auxiliary contacts)
IP20 (basic degree of protection, in the operating controls area)
IP66 (with door coupling rotary handle)
IP10 (tunnel terminal)
Max. 10 segments of 16 mm x 0.8 mm at box terminal
Max. 10 segments of 24 mm x 0.8 mm at rear-side connection (punched)
Max. 8 segments of 24 mm x 1 mm (2x) at box terminal
Min. 2 segements of 16 mm x 0.8 mm at rear-side connection (punched)
7500 operations at 690 V AC-1
6500 operations at 400 V AC-3
6500 operations at 415 V AC-3
10000 operations at 400 V AC-1
10000 operations at 415 V AC-1
0.75 mm² - 2.5 mm² (1x)
M8 at rear-side screw connection
Min. 16 mm x 5 mm direct at switch rear-side connection
6 mm² - 16 mm² (2x) direct at switch rear-side connection
10 mm² - 16 mm² (1x) direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
10 mm² - 16 mm² (1x) at box terminal
10 mm² - 16 mm² (2x) direct at switch rear-side connection
10 mm² - 16 mm² (1x) direct at switch rear-side connection
25 mm² - 185 mm² (1x) at 1-hole tunnel terminal
25 mm² - 70 mm² (2x) at box terminal
25 mm² - 70 mm² (2x) direct at switch rear-side connection
25 mm² - 185 mm² (1x) direct at switch rear-side connection
25 mm² - 185 mm² (1x) at tunnel terminal
25 mm² - 50 mm² (1x) direct at switch rear-side connection
