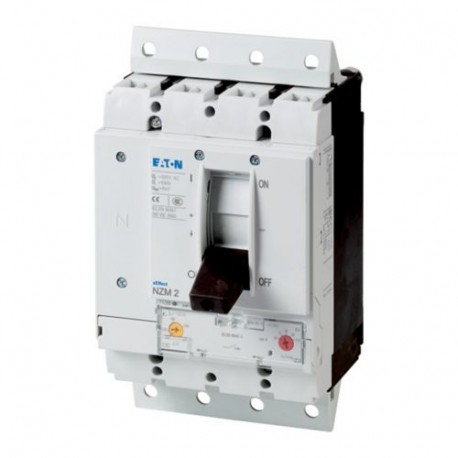

NZMB2-4-A125-SVE 113207 Y7-113207 EATON ELECTRIC Circuit-breaker, 4p, 125A, plug-in module
NZMB2-4-A125-SVE
113207
Y7-113207
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
NZMB2-4-A125-SVE 113207 Y7-113207 EATON ELECTRIC Circuit-breaker is an electromechanical protective device used to automatically interrupt electrical power during overload or short-circuit events. Standard circuit breakers are essential for maintaining safety and preventing damage in commercial and industrial electrical panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 125 A
- Rated voltage (EF003977): 440 V
- Overload release current setting (EF002336): 100 A
- Adjustment range undelayed short-circuit release (EF007131): 6 A
- Device construction (EF008240): Built-in device plug-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): Yes
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 4
- Position of connection for main current circuit (EF006671): Front Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲General specifications
Product specifications
Protection unit
DIN rail (top hat rail) mounting optional
Plug-in unit
