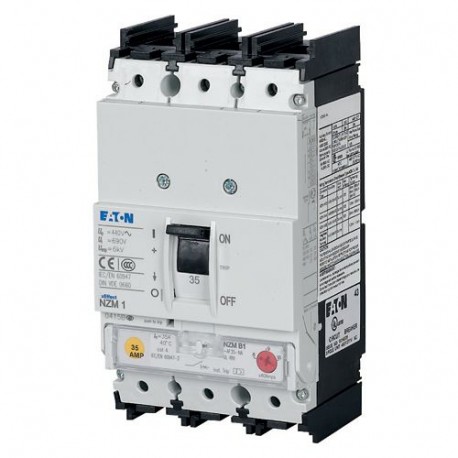

NZMN1-AF80-NA 274234 Y7-274234 EATON ELECTRIC Circuit-breaker, 3p, 80A
NZMN1-AF80-NA
274234
Y7-274234
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller NZMN1-AF80-NA Circuit-breaker, 3p, 80A is an essential electrical protection device utilized within industrial and commercial distribution networks to safeguard circuits from overloads and short circuits. It automatically interrupts fault currents to prevent equipment damage and maintain system reliability. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 80 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 80 A
- Adjustment range undelayed short-circuit release (EF007131): 6 A
- Power loss (EF005387): None W
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): false
- Type of electrical connection of main circuit (EF006819): Frame clamp
- Suitable for DIN rail (top hat rail) mounting (EF007250): false
- DIN rail (top hat rail) mounting optional (EF008904): true
- With switched-off indicator (EF007006): false
- With integrated under voltage release (EF001390): false
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front side
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): true
More info
▲General specifications
CSA certified
IEC/EN 60947
CSA (File No. 22086)
CSA-C22.2 No. 5-09
UL listed
IEC 60947-2
CE marking
IEC
Specially designed for North America
UL/CSA
UL (File No. E31593)
UL 489
CSA (Class No. 1432-01)
Product specifications
- Branch circuits, feeder circuits
- Use in unearthed supply systems at 690 V
DIN rail (top hat rail) mounting optional
Fixed
Damp heat, cyclic, to IEC 60068-2-30
500 V AC (between auxiliary contacts and main contacts)
IP20 (basic degree of protection, in the operating controls area)
80 A (690 V AC-1, making and breaking capacity)
125 A (415 V AC-1, making and breaking capacity)
80 A (660-690 V AC-3, making and breaking capacity)
IP66 (with door coupling rotary handle)
IP00 (terminations, phase isolator and strip terminal)
Min. 2 segments of 9 mm x 0.8 mm at box terminal
7500 operations at 690 V AC-1
System and cable protection
14 mm² - 18 mm² (1x)
Min. 12 mm x 5 mm direct at switch rear-side connection
M8 at rear-side screw connection
6 mm² - 12 mm² (1x) direct at switch rear-side connection
6 mm² - 12 mm² (1x) at box terminal
16 mm² - 95 mm² (1x) at tunnel terminal
25 mm² - 70 mm² (1x) at box terminal
4 mm² - 2/0 mm² (1x) direct at switch rear-side connection
4 mm² - 3/0 mm² (1x) at tunnel terminal
