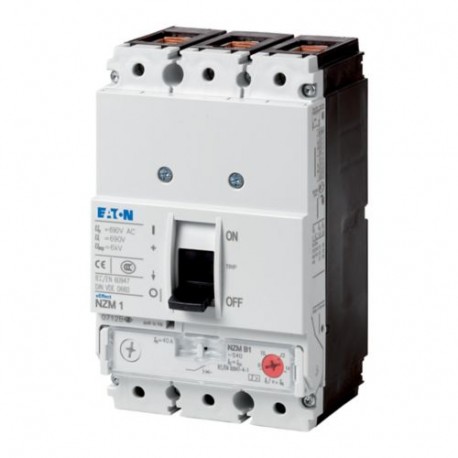

NZMB1-S63-CNA 281265 Y7-281265 EATON ELECTRIC Circuit-breaker, 3p, 63A
NZMB1-S63-CNA
281265
Y7-281265
EATON - MOELLER
1 Pcs.
Automation > Motor protection circuit-breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
NZMB1-S63-CNA manufactured by Eaton Moeller is a circuit-breaker, 3p, 63A utilized in electrical distribution panels to protect branch circuits from overcurrents and short-circuit damage. Molded case circuit breakers provide safe manual disconnection and dependable fault clearing for commercial and industrial loads.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Overload release current setting (EF002336): 0 A
- Adjustment range undelayed short-circuit release (EF007131): 504 A
- With thermal overload protection (EF006233): No
- Phase failure sensitive (EF007400): No
- Switch off technique (EF007007): Magnetic
- Rated operating voltage (EF001435): 440 V
- Rated permanent current Iu (EF001389): 63 A
- Rated operation power at AC-3, 230 V (EF007025): 18.5 kW
- Rated operation power at AC-3, 400 V (EF001364): 30 kW
- Type of control element (EF006976): Rocker lever
- Device construction (EF008240): Built-in device fixed built-in technique
- With integrated auxiliary switch (EF001387): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Degree of protection (IP) (EF005474): IP20
- Height (EF000040): 165.5 mm
More info
▲General specifications
CSA (File No. 22086)
CE marking
UL/CSA
UL (File No. E31593)
CSA (Class No. 1432-01)
UL 489
Specially designed for North America
IEC
UL (Category Control Number DKPU2)
UL listed
IEC 60947-2
CSA-C22.2 No. 5-09
CSA certified
Product specifications
- Branch circuits, feeder circuits
- Use in unearthed supply systems at 440 V
Fixed
Damp heat, constant, to IEC 60068-2-78
500 V AC (between auxiliary contacts and main contacts)
IP20 (basic degree of protection, in the operating controls area)
160 A (400 V AC-1, making and breaking capacity)
IP40 (with insulating surround)
IP00 (terminations, phase isolator and strip terminal)
Min. 2 segments of 9 mm x 0.8 mm at box terminal
16 mm² - 18 mm² (2x)
M6 at rear-side screw connection
Max. 16 mm x 5 mm direct at switch rear-side connection
6 mm² - 12 mm² (1x) direct at switch rear-side connection
6 mm² - 12 mm² (1x) at box terminal
6 mm² (1x) at tunnel terminal
4 mm² - 3/0 mm² (1x) at tunnel terminal
4 mm² - 2/0 mm² (1x) at box terminal
