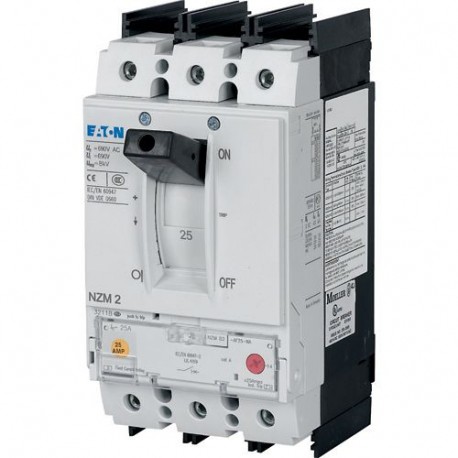

NZMB2-AF50-NA 269149 Y7-269149 EATON ELECTRIC Circuit-breaker, 3p, 50A
NZMB2-AF50-NA
269149
Y7-269149
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Industrial power distribution relies on thermal-magnetic circuit-breakers to safeguard electrical circuits against sustained overloads and sudden short-circuit events. This switching component automatically isolates faulty equipment to protect downstream wiring and personnel in commercial or factory installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 50 A
- Rated voltage (EF003977): 440 V
- Overload release current setting (EF002336): 50 A
- Adjustment range undelayed short-circuit release (EF007131): 300 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): Yes
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲General specifications
CSA (Class No. 1432-01)
UL 489
CSA (File No. 22086)
IEC 60947-2
IEC
UL (Category Control Number DIVQ)
IEC/EN 60947
CE marking
UL listed
CSA-C22.2 No. 5-09
UL/CSA
UL (File No. E31593)
CSA certified
Product specifications
- Branch circuits, feeder circuits
- Use in unearthed supply systems at 440 V
Motor drive optional
DIN rail (top hat rail) mounting optional
Fixed
Damp heat, constant, to IEC 60068-2-78
500 V AC (between auxiliary contacts and main contacts)
IP20
300 A (415 V AC-1, making and breaking capacity)
IP66 (with door coupling rotary handle)
IP10 (tunnel terminal)
Max. 10 segments of 16 mm x 0.8 mm at box terminal
Min. 2 segments of 9 mm x 0.8 mm at box terminal
Min. 2 segements of 16 mm x 0.8 mm at rear-side connection (punched)
6500 operations at 415 V AC-3
System and cable protection
14 mm² - 18 mm² (1x)
Min. 16 mm x 5 mm direct at switch rear-side connection
Max. 20 mm x 5 mm direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
6 mm² - 11 mm² (1x) direct at switch rear-side connection
4 mm² - 350 mm² (1x) at tunnel terminal
4 mm² - 3/0 mm² (1x) direct at switch rear-side connection
