NZMN1-AF45-NA 274230 Y7-274230 EATON ELECTRIC Circuit-breaker, 3p, 45A
NZMN1-AF45-NA
274230
Y7-274230
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

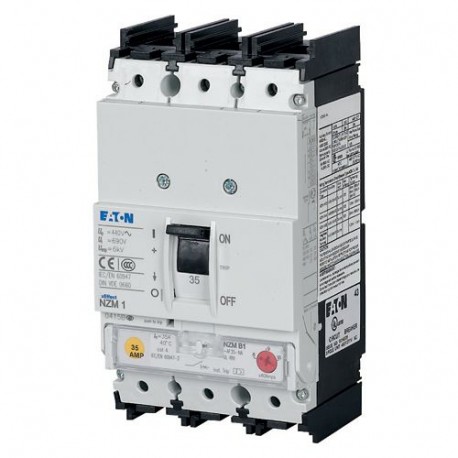

An Eaton Moeller NZMN1-AF45-NA 274230 Y7-274230 EATON ELECTRIC Circuit-breaker, 3p, 45A (NZMN1-AF45-NA) is a compact molded case circuit breaker used to protect low-voltage electrical circuits and motor loads against overcurrent conditions. It offers reliable switching and fault isolation in commercial and industrial control panels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 45 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 45 A
- Adjustment range undelayed short-circuit release (EF007131): 6 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Frame clamp
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): Yes
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲General specifications
UL/CSA
UL (Category Control Number DIVQ)
UL 489
IEC/EN 60947
CSA certified
CSA (File No. 22086)
CE marking
UL listed
IEC
IEC 60947-2
Specially designed for North America
CSA (Class No. 1432-01)
UL (File No. E31593)
Product specifications
- Branch circuits, feeder circuits
- Use in unearthed supply systems at 690 V
Fixed
Built-in device fixed built-in technique
Damp heat, constant, to IEC 60068-2-78
500 V AC (between auxiliary contacts and main contacts)
IP20 (basic degree of protection, in the operating controls area)
125 A (415 V AC-1, making and breaking capacity)
45 A (660-690 V AC-3, making and breaking capacity)
160 A (380/400 V AC-1, making and breaking capacity)
IP66 (with door coupling rotary handle)
IP10 (tunnel terminal)
Max. 9 segments of 9 mm x 0.8 mm at box terminal
10000 operations at 400 V AC-1
System and cable protection
16 mm² - 18 mm² (2x)
Min. 12 mm x 5 mm direct at switch rear-side connection
Max. 16 mm x 5 mm direct at switch rear-side connection
6 mm² - 9 mm² (2x) direct at switch rear-side connection
6 mm² - 12 mm² (1x) direct at switch rear-side connection
16 mm² - 95 mm² (1x) at tunnel terminal
4 mm² - 3/0 mm² (1x) at tunnel terminal
25 mm² - 70 mm² (1x) at box terminal
25 mm² (2x) at box terminal
