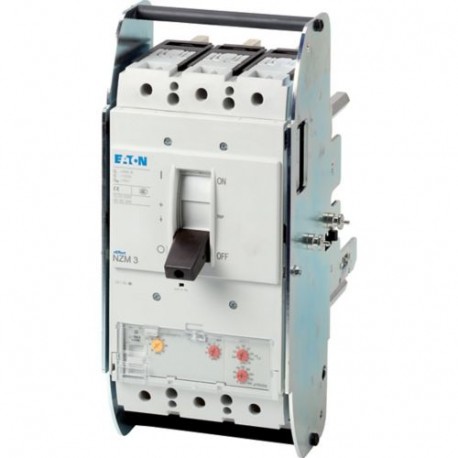

NZMH3-AE400-T-AVE 113571 Y7-113571 EATON ELECTRIC Circuit-breaker, 3p, 400A, withdrawable unit
NZMH3-AE400-T-AVE
113571
Y7-113571
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed with a withdrawable chassis configuration, the Eaton Moeller NZMH3-AE400-T-AVE 113571 Y7-113571 EATON ELECTRIC Circuit-breaker, 3p, 400A, withdrawable unit, tracked via part number NZMH3-AE400-T-AVE, serves as a high-capacity circuit breaker for industrial power distribution systems. Withdrawable circuit breakers allow safe removal and replacement from switchgear housings without requiring a complete system shutdown.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 400 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 200 A
- Adjustment range undelayed short-circuit release (EF007131): 800 A
- Power loss (EF005387): None W
- Device construction (EF008240): Built-in device slide-in technique (withdrawable)
- Integrated earth fault protection (EF007296): true
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): false
- DIN rail (top hat rail) mounting optional (EF008904): false
- With switched-off indicator (EF007006): false
- With integrated under voltage release (EF001390): false
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front side
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): true
More info
▲General specifications
IEC/EN 60947
Product specifications
Motor drive optional
Built-in device slide-in technique (withdrawable)
Damp heat, constant, to IEC 60068-2-78
300 V AC (between the auxiliary contacts)
IP20
IP40 (with insulating surround)
IP10 (tunnel terminal)
Max. 10 segments of 24 mm x 1 mm + 5 segments of 24 mm x 1 mm
Min. 6 segments of 16 mm x 0.8 mm at box terminal
Min. 6 segments of 16 mm x 0.8 mm at rear-side connection (punched)
Max. 8 segments of 24 mm x 1 mm (2x) at box terminal
Max. 10 segments of 32 mm x 1 mm + 5 segments of 32 mm x 1 mm at rear-side connection (punched)
2000 operations at 690 V AC-3
3000 operations at 690 V AC-1
5000 operations at 400 V AC-1
2000 operations at 400 V AC-3
5000 operations at 415 V AC-1
System and cable protection
0.75 mm² - 2.5 mm² (1x)
M10 at rear-side screw connection
Max. 10 mm x 50 mm (2x) at rear-side width extension
Min. 20 mm x 5 mm direct at switch rear-side connection
16 mm² (2x) direct at switch rear-side connection
300 mm² (2x) at rear-side width extension
16 mm² (1x) at tunnel terminal
16 mm² (1x) direct at switch rear-side connection
25 mm² - 240 mm² (2x) direct at switch rear-side connection
35 mm² - 240 mm² (1x) at box terminal
25 mm² - 120 mm² (2x) at box terminal
16 mm² - 185 mm² (1x) at 1-hole tunnel terminal
50 mm² - 240 mm² (2x) at 2-hole tunnel terminal
50 mm² - 240 mm² (1x) at 2-hole tunnel terminal
