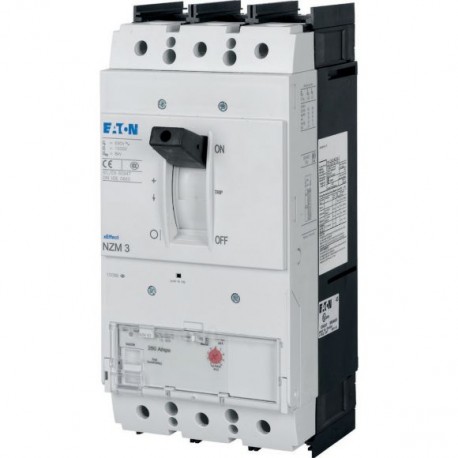

NZMN3-AEF400-NA 269278 Y7-269278 EATON ELECTRIC Circuit-breaker, 3p, 400A
NZMN3-AEF400-NA
269278
Y7-269278
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller NZMN3-AEF400-NA 269278 Y7-269278 EATON ELECTRIC Circuit-breaker, 3p, 400A is a three-pole circuit-breaker built to protect industrial electrical distribution systems against overloads and short circuits. Circuit-breakers serve as automatic safety switches that isolate power when current exceeds safe operating thresholds, safeguarding downstream machinery and wiring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 400 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 400 A
- Adjustment range undelayed short-circuit release (EF007131): 800 A
- Power loss (EF005387): None W
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): false
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): false
- DIN rail (top hat rail) mounting optional (EF008904): false
- With switched-off indicator (EF007006): false
- With integrated under voltage release (EF001390): false
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front side
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): true
More info
▲General specifications
CSA-C22.2 No. 5-09
IEC/EN 60947
CE marking
IEC
CSA certified
UL 489
UL/CSA
IEC 60947-2
Specially designed for North America
CSA (Class No. 1432-01)
UL (File No. E31593)
CSA (File No. 22086)
UL (Category Control Number DIVQ)
Product specifications
- Branch circuits, feeder circuits
- Use in unearthed supply systems at 690 V
Protection unit
Fixed
Damp heat, constant, to IEC 60068-2-78
300 V AC (between the auxiliary contacts)
IP20
500 A (415 V AC-1, making and breaking capacity)
400 A (690 V AC -1, making and breaking capacity)
400 A (660-690 V AC-3, making and breaking capacity)
IP66 (with door coupling rotary handle)
IP10 (tunnel terminal)
Max. 10 segments of 24 mm x 1 mm + 5 segments of 24 mm x 1 mm
Max. 8 segments of 24 mm x 1 mm (2x) at box terminal
Min. 6 segments of 16 mm x 0.8 mm at box terminal
Max. 10 segments of 32 mm x 1 mm + 5 segments of 32 mm x 1 mm at rear-side connection (punched)
Min. 6 segments of 16 mm x 0.8 mm at rear-side connection (punched)
2000 operations at 400 V AC-3
3000 operations at 690 V AC-1
2000 operations at 690 V AC-3
2000 operations at 415 V AC-3
Current limiting circuit breaker
16 mm² - 18 mm² (2x)
Max. 10 mm x 50 mm (2x) at rear-side width extension
M10 at rear-side screw connection
500 mm² (2x) at rear-side width extension
4 mm² - 350 mm² (1x) direct at switch rear-side connection
2 mm² - 500 mm² (1x) at box terminal
4 mm² - 350 mm² (1x) at tunnel terminal
Max. 500 mm² (2x) at 2-hole tunnel terminal
