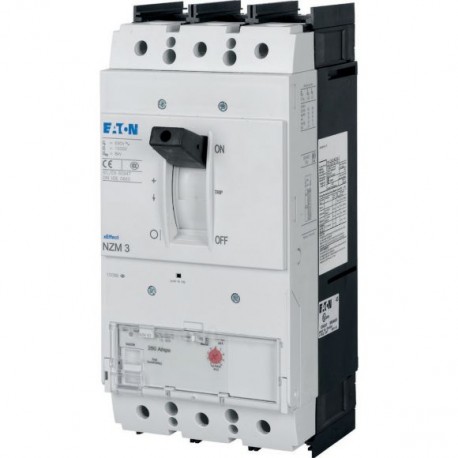

NZMN3-AEF350-NA 269277 Y7-269277 EATON ELECTRIC Circuit-breaker, 3p, 350A
NZMN3-AEF350-NA
269277
Y7-269277
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eaton Moeller NZMN3-AEF350-NA circuit-breaker is an industrial protective switching device engineered to automatically disconnect power during overcurrent or short-circuit events. These reliable components are widely integrated into distribution boards and motor control panels to safeguard electrical infrastructure. Commercial pricing, inventory availability, and lead times are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 350 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 350 A
- Adjustment range undelayed short-circuit release (EF007131): 700 A
- Power loss (EF005387): None W
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): false
- Type of electrical connection of main circuit (EF006819): Screw connection
- Suitable for DIN rail (top hat rail) mounting (EF007250): false
- DIN rail (top hat rail) mounting optional (EF008904): false
- With switched-off indicator (EF007006): false
- With integrated under voltage release (EF001390): false
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front side
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): true
More info
▲General specifications
UL/CSA
CSA (Class No. 1432-01)
UL (File No. E31593)
IEC 60947-2
UL listed
IEC
CSA certified
CSA (File No. 22086)
UL (Category Control Number DIVQ)
UL 489
IEC/EN 60947
CE marking
Specially designed for North America
Product specifications
- Branch circuits, feeder circuits
- Use in unearthed supply systems at 690 V
Motor drive optional
Built-in device fixed built-in technique
Damp heat, constant, to IEC 60068-2-78
500 V AC (between auxiliary contacts and main contacts)
IP20
350 A (660-690 V AC-3, making and breaking capacity)
350 A (690 V AC-1, making and breaking capacity)
500 A (415 V AC-1, making and breaking capacity)
IP40 (with insulating surround)
IP10 (tunnel terminal)
Max. 8 segments of 24 mm x 1 mm (2x) at box terminal
Min. 6 segments of 16 mm x 0.8 mm at box terminal
Max. 10 segments of 24 mm x 1 mm + 5 segments of 24 mm x 1 mm
10 segments of 50 mm x 1 mm (2x) at rear-side width extension
Max. 10 segments of 32 mm x 1 mm + 5 segments of 32 mm x 1 mm at rear-side connection (punched)
2000 operations at 400 V AC-3
2000 operations at 690 V AC-3
2000 operations at 415 V AC-3
3000 operations at 690 V AC-1
Current limiting circuit breaker
14 mm² - 18 mm² (1x)
M10 at rear-side screw connection
Max. 10 mm x 50 mm (2x) at rear-side width extension
16 mm² - 185 mm² (1x) at tunnel terminal
2 mm² - 500 mm² (1x) at box terminal
350 mm² (2x) direct at switch rear-side connection
4 mm² - 350 mm² (1x) direct at switch rear-side connection
Max. 500 mm² (1x) at 2-hole tunnel terminal
