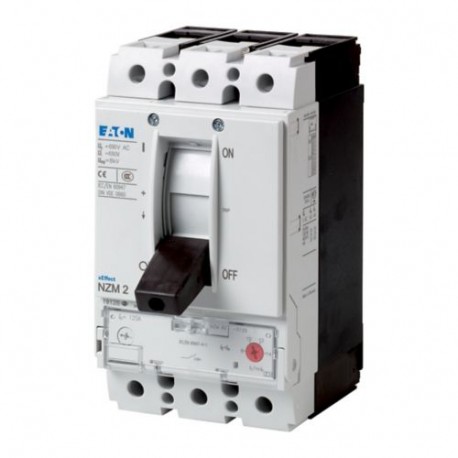

NZMB2-S33-BT-CNA 107658 Y7-107658 EATON ELECTRIC Circuit-breaker, 3p, 33A, box terminals
NZMB2-S33-BT-CNA
107658
Y7-107658
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Protect secondary distribution circuits effectively with an Eaton Moeller NZMB2-S33-BT-CNA circuit-breaker. These compact protective devices are designed to interrupt abnormal electrical flows, securing equipment and preventing electrical hazards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 33 A
- Rated voltage (EF003977): 440 V
- Overload release current setting (EF002336): 0 A
- Adjustment range undelayed short-circuit release (EF007131): 8 A
- Power loss (EF005387): None W
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): false
- Type of electrical connection of main circuit (EF006819): Frame clamp
- Suitable for DIN rail (top hat rail) mounting (EF007250): false
- DIN rail (top hat rail) mounting optional (EF008904): true
- With switched-off indicator (EF007006): false
- With integrated under voltage release (EF001390): false
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front side
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): true
More info
▲General specifications
UL 489
Specially designed for North America
UL listed
UL (File No. E31593)
UL (Category Control Number DKPU2)
CSA (Class No. 1432-01)
UL/CSA
CSA certified
CSA-C22.2 No. 5-09
Product specifications
Protection unit
DIN rail (top hat rail) mounting optional
Built-in device fixed built-in technique
Damp heat, constant, to IEC 60068-2-78
300 V AC (between the auxiliary contacts)
IP20 (basic degree of protection, in the operating controls area)
IP40 (with insulating surround)
IP10 (tunnel terminal)
Max. 10 segments of 16 mm x 0.8 mm at rear-side connection (punched)
Min. 2 segements of 16 mm x 0.8 mm at rear-side connection (punched)
Min. 2 segments of 9 mm x 0.8 mm at box terminal
7500 operations at 400 V AC-1
16 mm² - 18 mm² (2x)
Max. 20 mm x 5 mm direct at switch rear-side connection
M8 at rear-side screw connection
6 mm² - 12 mm² (1x) at box terminal
6 mm² - 11 mm² (1x) direct at switch rear-side connection
4 mm² - 3/0 mm² (1x) direct at switch rear-side connection
4 mm² - 350 mm² (1x) at box terminal
