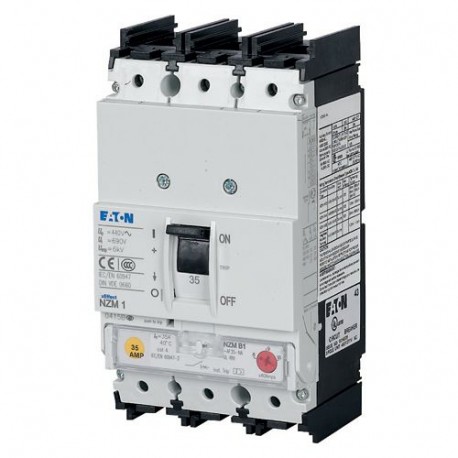

NZMB1-AF30-NA 281556 Y7-281556 EATON ELECTRIC Circuit-breaker, 3p, 30A
NZMB1-AF30-NA
281556
Y7-281556
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Electrical distribution systems rely on protective devices such as this NZMB1-AF30-NA 281556 Y7-281556 EATON ELECTRIC Circuit-breaker, 3p, 30A to interrupt abnormal current flow and prevent damage. Circuit breakers are deployed extensively across commercial and industrial facilities to provide dependable overload and short-circuit protection.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 30 A
- Rated voltage (EF003977): 440 V
- Overload release current setting (EF002336): 30 A
- Adjustment range undelayed short-circuit release (EF007131): 350 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Frame clamp
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): Yes
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲General specifications
UL/CSA
CSA certified
Specially designed for North America
UL (File No. E31593)
UL 489
IEC/EN 60947
UL (Category Control Number DIVQ)
CE marking
UL listed
CSA-C22.2 No. 5-09
CSA (Class No. 1432-01)
CSA (File No. 22086)
IEC
Product specifications
- Branch circuits, feeder circuits
- Use in unearthed supply systems at 440 V
DIN rail (top hat rail) mounting optional
Built-in device fixed built-in technique
Damp heat, constant, to IEC 60068-2-78
300 V AC (between the auxiliary contacts)
IP20
125 A (415 V AC-1, making and breaking capacity)
IP40 (with insulating surround)
IP10 (tunnel terminal)
Max. 9 segments of 9 mm x 0.8 mm at box terminal
System and cable protection
16 mm² - 18 mm² (2x)
M8 at rear-side screw connection
Max. 16 mm x 5 mm direct at switch rear-side connection
6 mm² - 9 mm² (2x) direct at switch rear-side connection
6 mm² - 12 mm² (1x) at box terminal
16 mm² - 95 mm² (1x) at tunnel terminal
25 mm² - 70 mm² (1x) at box terminal
4 mm² - 2/0 mm² (1x) direct at switch rear-side connection
25 mm² (2x) at box terminal
