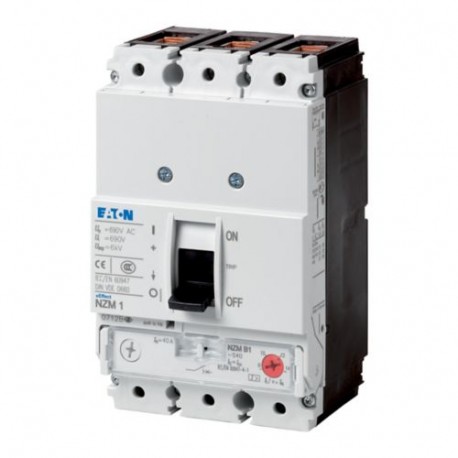

NZMB1-S26-CNA 103023 Y7-103023 EATON ELECTRIC Circuit-breaker, 3p, 26A
NZMB1-S26-CNA
103023
Y7-103023
EATON - MOELLER
1 Pcs.
Automation > Motor protection circuit-breaker
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller NZMB1-S26-CNA circuit-breaker provides reliable magnetic overcurrent protection for electrical circuits within commercial and industrial installations. Engineers rely on these compact switching devices to clear fault conditions swiftly and protect downstream electrical equipment from damage. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Overload release current setting (EF002336): 0 A
- Adjustment range undelayed short-circuit release (EF007131): 208 A
- With thermal overload protection (EF006233): No
- Phase failure sensitive (EF007400): No
- Switch off technique (EF007007): Magnetic
- Rated operating voltage (EF001435): 440 V
- Rated permanent current Iu (EF001389): 26 A
- Rated operation power at AC-3, 230 V (EF007025): 5.5 kW
- Rated operation power at AC-3, 400 V (EF001364): 11 kW
- Type of control element (EF006976): Rocker lever
- Device construction (EF008240): Built-in device fixed built-in technique
- With integrated auxiliary switch (EF001387): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Degree of protection (IP) (EF005474): IP20
- Height (EF000040): 165.5 mm
More info
▲General specifications
CSA-C22.2 No. 5-09
UL (Category Control Number DKPU2)
CSA certified
UL/CSA
CSA (Class No. 1432-01)
UL (File No. E31593)
UL listed
Specially designed for North America
CSA (File No. 22086)
Product specifications
Fixed
Damp heat, cyclic, to IEC 60068-2-30
500 V AC (between auxiliary contacts and main contacts)
IP20 (basic degree of protection, in the operating controls area)
IP66 (with door coupling rotary handle)
IP10 (tunnel terminal)
Max. 9 segments of 9 mm x 0.8 mm at box terminal
14 mm² - 18 mm² (1x)
Max. 16 mm x 5 mm direct at switch rear-side connection
M6 at rear-side screw connection
6 mm² - 12 mm² (1x) direct at switch rear-side connection
6 mm² - 12 mm² (1x) at box terminal
6 mm² - 9 mm² (2x) direct at switch rear-side connection
4 mm² - 2/0 mm² (1x) at box terminal
4 mm² - 2/0 mm² (1x) direct at switch rear-side connection
