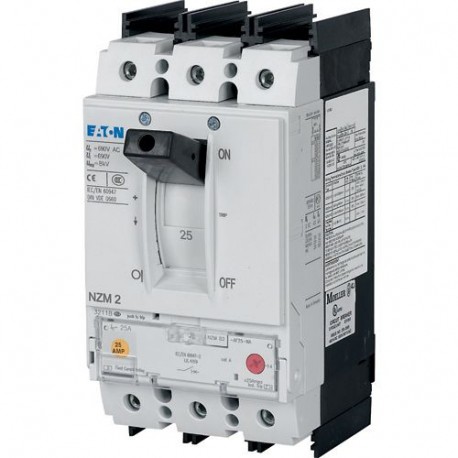

NZMH2-AF25-BT-NA 107811 Y7-107811 EATON ELECTRIC Circuit-breaker, 3p, 25A, box terminals
NZMH2-AF25-BT-NA
107811
Y7-107811
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This NZMH2-AF25-BT-NA 107811 Y7-107811 EATON ELECTRIC Circuit-breaker, 3p, 25A, box terminals is a dedicated protective device designed to interrupt fault currents in electrical distribution systems. Industrial facilities rely on these components to protect machinery and prevent electrical hazards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 25 A
- Rated voltage (EF003977): 690 V
- Overload release current setting (EF002336): 25 A
- Adjustment range undelayed short-circuit release (EF007131): 350 A
- Power loss (EF005387): None W
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): false
- Type of electrical connection of main circuit (EF006819): Frame clamp
- Suitable for DIN rail (top hat rail) mounting (EF007250): false
- DIN rail (top hat rail) mounting optional (EF008904): true
- With switched-off indicator (EF007006): false
- With integrated under voltage release (EF001390): false
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front side
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): true
More info
▲General specifications
IEC
UL (Category Control Number DIVQ)
UL (File No. E31593)
IEC/EN 60947
CSA-C22.2 No. 5-09
IEC 60947-2
UL 489
UL listed
Specially designed for North America
CSA (File No. 22086)
CE marking
CSA certified
UL/CSA
Product specifications
- Branch circuits, feeder circuits
- Use in unearthed supply systems at 690 V
Protection unit
DIN rail (top hat rail) mounting optional
Built-in device fixed built-in technique
Damp heat, constant, to IEC 60068-2-78
500 V AC (between auxiliary contacts and main contacts)
IP20
300 A (415 V AC-1, making and breaking capacity)
25 A (660-690 V AC-3, making and breaking capacity)
300 A (380/400 V AC-1, making and breaking capacity)
IP40 (with insulating surround)
IP10 (tunnel terminal)
Min. 2 segements of 16 mm x 0.8 mm at rear-side connection (punched)
Max. 10 segments of 16 mm x 0.8 mm at rear-side connection (punched)
Min. 2 segments of 9 mm x 0.8 mm at box terminal
10000 operations at 400 V AC-1
6500 operations at 400 V AC-3
7500 operations at 690 V AC-1
6500 operations at 415 V AC-3
System and cable protection
14 mm² - 18 mm² (1x)
Min. 16 mm x 5 mm direct at switch rear-side connection
Max. 20 mm x 5 mm direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
6 mm² - 11 mm² (1x) direct at switch rear-side connection
4 mm² - 3/0 mm² (1x) direct at switch rear-side connection
4 mm² - 350 mm² (1x) at box terminal
