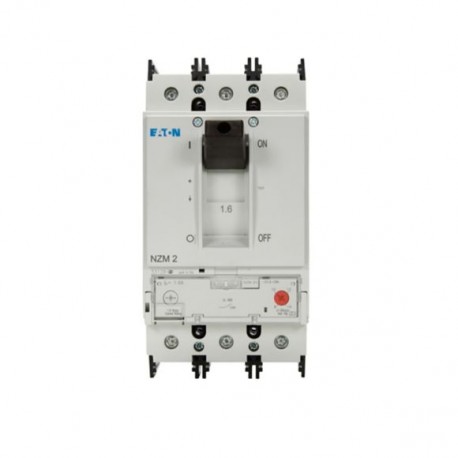

NZMB2-S2,4-BT-CNA 107652 Y7-107652 EATON ELECTRIC Circuit-breaker, 3p, 2.4A, box terminals
NZMB2-S2,4-BT-CNA
107652
Y7-107652
EATON - MOELLER
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Circuit Breakers NZM
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Circuit protection in electrical power systems is managed efficiently using devices like this NZMB2-S2,4-BT-CNA 107652 Y7-107652 EATON ELECTRIC Circuit-breaker, 3p, 2.4A, box terminals. Circuit breakers interrupt fault currents to prevent overheating and potential damage to electrical wiring and connected machinery.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Rated permanent current Iu (EF001389): 2.4 A
- Rated voltage (EF003977): 440 V
- Overload release current setting (EF002336): 0 A
- Adjustment range undelayed short-circuit release (EF007131): 8 A
- Device construction (EF008240): Built-in device fixed built-in technique
- Integrated earth fault protection (EF007296): No
- Type of electrical connection of main circuit (EF006819): Frame clamp
- Suitable for DIN rail (top hat rail) mounting (EF007250): No
- DIN rail (top hat rail) mounting optional (EF008904): Yes
- With switched-off indicator (EF007006): No
- With integrated under voltage release (EF001390): No
- Number of poles (EF001391): 3
- Position of connection for main current circuit (EF006671): Front
- Type of control element (EF006976): Rocker lever
- Complete device with protection unit (EF008906): Yes
- Motor drive integrated (EF006697): No
More info
▲General specifications
UL/CSA
CSA certified
CSA (Class No. 1432-01)
CSA (File No. 22086)
Specially designed for North America
UL (Category Control Number DKPU2)
UL (File No. E31593)
UL 489
CSA-C22.2 No. 5-09
Product specifications
Motor drive optional
Built-in device fixed built-in technique
DIN rail (top hat rail) mounting optional
Damp heat, constant, to IEC 60068-2-78
IP40 (with insulating surround)
IP00 (terminations, phase isolator and strip terminal)
Max. 10 segments of 16 mm x 0.8 mm at rear-side connection (punched)
Max. 10 segments of 16 mm x 0.8 mm at box terminal
Min. 2 segements of 16 mm x 0.8 mm at rear-side connection (punched)
6500 operations at 415 V AC-3
Max. 20 mm x 5 mm direct at switch rear-side connection
Min. 16 mm x 5 mm direct at switch rear-side connection
6 mm² - 11 mm² (1x) direct at switch rear-side connection
16 mm² (1x) at tunnel terminal
4 mm² - 350 mm² (1x) at box terminal
